構成の設定

Intent i = new Intent(); i.setAction("com.symbol.datawedge.api.ACTION"); i.putExtra("com.symbol.datawedge.api.SET_CONFIG", <mainbundle>);

注:

• 特に明記されていない限り、デフォルトの action_param 値は 0、空、またはなしです。
• データの損失を最小限に抑えるため、ENTER、LINE FEED、または TAB の文字を送信した後、50ms の DELAY を送信することをお勧めします。

トークン パラメータ

すべてのパラメータは、大文字と小文字が区別されます。

UDI またはマルチバーコードに適用されます。

「IP 出力」または「キーストローク出力」の「UDI データ出力」を参照してください。

ワークフロー セパレータ パラメータ

ワークフロー データ出力に適用されます。

GS1 トークン パラメータ

GS1 解析、GS1 Digital Link 解析、およびマルチバーコードに適用されます。

すべてのパラメータは、大文字と小文字が区別されます。

インテント出力パラメータ

すべてのパラメータは、大文字と小文字が区別されます。

キーストローク出力パラメータ

すべてのパラメータは、大文字と小文字が区別されます。

キーストローク遅延に関する注意事項

• keystroke_delay_extended_ascii パラメータは廃止予定です。
• キーストローク プラグイン バンドルで keystroke_delay_extended_ascii パラメータを使用する場合、keystroke_delay_multibyte_chars_only パラメータは true に設定されます。
• keystroke_delay_extended_ascii と keystroke_character_delay の両方のパラメータが送信された場合:
• keystroke_character_delay の値は保持されます。
• keystroke_delay_extended_ascii の値は無視されます。
• 使用可能であれば、keystroke_delay_multibyte_chars_only の値は保存されます。そうでない場合は、エラーと見なされます。

IP 出力パラメータ

すべてのパラメータは、大文字と小文字が区別されます。

コード例

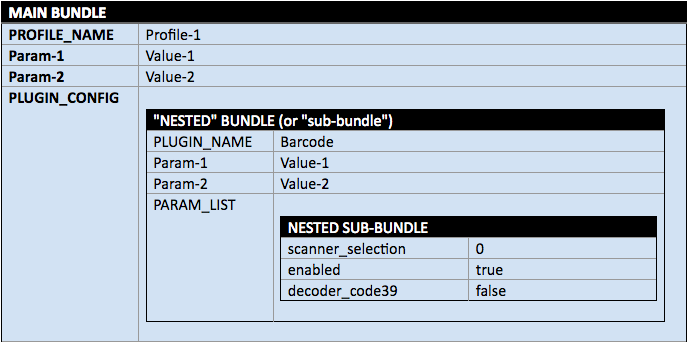

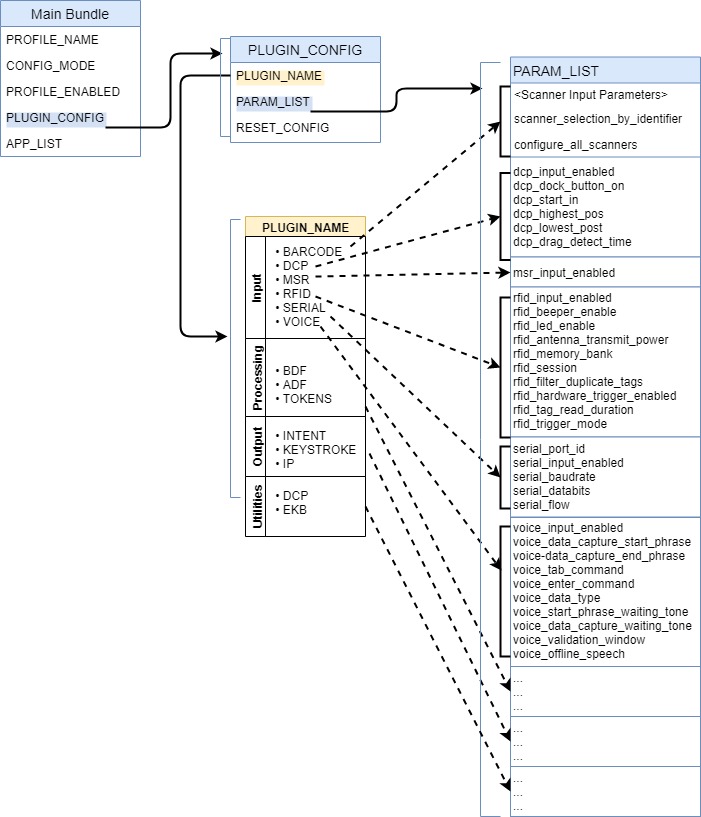

ネストされたバンドル

// MAIN BUNDLE PROPERTIES Bundle bMain = new Bundle(); bMain.putString("PROFILE_NAME","Profile12"); // <- "Profile12" is a bundle bMain.putString("PROFILE_ENABLED","true"); // <- that will be enabled bMain.putString("CONFIG_MODE","CREATE_IF_NOT_EXIST"); // <- or created if necessary. // PLUGIN_CONFIG BUNDLE PROPERTIES Bundle bConfig = new Bundle(); bConfig.putString("PLUGIN_NAME","BARCODE"); bConfig.putString("RESET_CONFIG","true"); // PARAM_LIST BUNDLE PROPERTIES Bundle bParams = new Bundle(); bParams.putString("scanner_selection","auto"); bParams.putString("scanner_input_enabled","true"); // // NOTE: The "scanner_selection" parameter (above) supports "auto" selection // --OR-- the assignment of a scanner device index, which is obtained by // using the ENUMERATE_SCANNERS API. // // Syntax for scanner index: // // Bundle bParams = new Bundle(); // diff--> bParams.putString("current-device-id","0"); // bParams.putString("scanner_input_enabled","true"); // // // NEST THE BUNDLE "bParams" WITHIN THE BUNDLE "bConfig" bConfig.putBundle("PARAM_LIST", bParams); // THEN NEST THE "bConfig" BUNDLE WITHIN THE MAIN BUNDLE "bMain" bMain.putBundle("PLUGIN_CONFIG", bConfig); // CREATE APP_LIST BUNDLES (apps and/or activities to be associated with the Profile) Bundle bundleApp1 = new Bundle(); bundleApp1.putString("PACKAGE_NAME","com.symbol.emdk.simulscansample1"); bundleApp1.putStringArray("ACTIVITY_LIST", new String[]{ "com.symbol.emdk.simulscansample1.DeviceControl", "com.symbol.emdk.simulscansample1.MainActivity", "com.symbol.emdk.simulscansample1.ResultsActivity.*", "com.symbol.emdk.simulscansample1.ResultsActivity2", "com.symbol.emdk.simulscansample1.SettingsFragment1"}); Bundle bundleApp2 = new Bundle(); bundleApp2.putString("PACKAGE_NAME","com.example.intents.datawedgeintent"); bundleApp2.putStringArray("ACTIVITY_LIST", new String[]{ "com.example.intents.datawedgeintent.DeviceControl", "com.example.intents.datawedgeintent.MainActivity", "com.example.intents.datawedgeintent.ResultsActivity", "com.example.intents.datawedgeintent.SettingsFragment1"}); Bundle bundleApp3 = new Bundle(); bundleApp3.putString("PACKAGE_NAME","*"); bundleApp3.putStringArray("ACTIVITY_LIST", new String[]{"*"}); Bundle bundleApp4 = new Bundle(); bundleApp4.putString("PACKAGE_NAME","com.symbol.myzebraapp"); bundleApp4.putStringArray("ACTIVITY_LIST", new String[]{"*"}); // NEXT APP_LIST BUNDLE(S) INTO THE MAIN BUNDLE bMain.putParcelableArray("APP_LIST", new Bundle[]{ bundleApp1 ,bundleApp2 ,bundleApp3 ,bundleApp4 }); Intent i = new Intent(); i.setAction("com.symbol.datawedge.api.ACTION"); i.putExtra("com.symbol.datawedge.api.SET_CONFIG", bMain); this.sendBroadcast(i);

バーコードのハイライト パラメータを設定します

プロファイル内のバーコードのハイライトを設定します。

public void setHighlightBarcodes() { Bundle bMain = new Bundle(); bMain.putString("PROFILE_NAME", "Demo"); bMain.putString("PROFILE_ENABLED", "true"); bMain.putString("CONFIG_MODE", "CREATE_IF_NOT_EXIST"); Bundle bConfig = new Bundle(); bConfig.putString("PLUGIN_NAME", "BARCODE"); bConfig.putString("RESET_CONFIG", "true"); Bundle bParams = new Bundle(); bParams.putString("scanner_selection", "auto"); bParams.putString("scanner_input_enabled", "true"); bParams.putString("barcode_highlighting_enabled", "true"); // true , false /*##### Rules configuration start #####*/ Bundle rule1 = new Bundle(); rule1.putString("rule_name","Rule1"); Bundle rule1Criteria = new Bundle(); Bundle bundleMinLength = new Bundle(); bundleMinLength.putString("criteria_key","min_length"); bundleMinLength.putString("criteria_value","1"); Bundle bundleMaxLength = new Bundle(); bundleMaxLength.putString("criteria_key","max_length"); bundleMaxLength.putString("criteria_value","10"); Bundle bundleContains = new Bundle(); bundleContains.putString("criteria_key","contains"); bundleContains.putString("criteria_value","abc"); Bundle bundleIgnoreCase = new Bundle(); bundleIgnoreCase.putString("criteria_key","ignore_case"); bundleIgnoreCase.putString("criteria_value","true"); ArrayList<Bundle> identifierParamList = new ArrayList<>(); identifierParamList.add(bundleMinLength); identifierParamList.add(bundleMaxLength); identifierParamList.add(bundleContains); identifierParamList.add(bundleIgnoreCase); rule1Criteria.putParcelableArrayList("identifier",identifierParamList); rule1Criteria.putStringArray("symbology",new String[]{"decoder_qrcode","decoder_upca"}); rule1.putBundle("criteria",rule1Criteria); Bundle bundleFillColor = new Bundle(); bundleFillColor.putString("action_key","fillcolor"); bundleFillColor.putString("action_value","#FFFF0008"); ArrayList<Bundle> rule1Actions = new ArrayList<>(); rule1Actions.add(bundleFillColor); rule1.putParcelableArrayList("actions",rule1Actions); ArrayList<Bundle> barcodeOverlayRuleList = new ArrayList<>(); barcodeOverlayRuleList.add(rule1); /** * report data */ /*##### Report data for rule Start #####*/ Bundle rule2 = new Bundle(); rule2.putString("rule_name","Rule2"); Bundle rule2Criteria = new Bundle(); Bundle rule2BundleMinLength = new Bundle(); rule2BundleMinLength.putString("criteria_key","min_length"); rule2BundleMinLength.putString("criteria_value","2"); Bundle rule2BundleMaxLength = new Bundle(); rule2BundleMaxLength.putString("criteria_key","max_length"); rule2BundleMaxLength.putString("criteria_value","4"); Bundle rule2BundleContains = new Bundle(); rule2BundleContains.putString("criteria_key","contains"); rule2BundleContains.putString("criteria_value","test1234"); Bundle rule2BundleIgnoreCase = new Bundle(); rule2BundleIgnoreCase.putString("criteria_key","ignore_case"); rule2BundleIgnoreCase.putString("criteria_value","false"); ArrayList<Bundle> rule2IdentifierParamList = new ArrayList<>(); rule2IdentifierParamList.add(rule2BundleMinLength); rule2IdentifierParamList.add(rule2BundleMaxLength); rule2IdentifierParamList.add(rule2BundleContains); rule2IdentifierParamList.add(rule2BundleIgnoreCase); rule2Criteria.putParcelableArrayList("identifier",rule2IdentifierParamList); rule2Criteria.putStringArray("symbology",new String[]{"decoder_grid_matrix"}); rule2.putBundle("criteria",rule2Criteria); Bundle rule2BundleStrokeColor = new Bundle(); rule2BundleStrokeColor.putString("action_key","report"); ArrayList<Bundle> rule2Actions = new ArrayList<>(); rule2Actions.add(rule2BundleStrokeColor); rule2.putParcelableArrayList("actions",rule2Actions); ArrayList<Bundle> reportDataRuleList = new ArrayList<>(); reportDataRuleList.add(rule2); /*##### Report data for rule End #####*/ Bundle ruleBundleBarcodeOverlay = new Bundle(); ruleBundleBarcodeOverlay.putString("rule_param_id","barcode_overlay"); ruleBundleBarcodeOverlay.putParcelableArrayList("rule_list", barcodeOverlayRuleList); Bundle ruleBundleReportData = new Bundle(); ruleBundleReportData.putString("rule_param_id","report_data"); ruleBundleReportData.putParcelableArrayList("rule_list", reportDataRuleList); ArrayList<Bundle> ruleParamList = new ArrayList<>(); ruleParamList.add(ruleBundleBarcodeOverlay); ruleParamList.add(ruleBundleReportData); /*##### Rules configuration end #####*/ bParams.putParcelableArrayList("barcode_highlighting_rules", ruleParamList); bConfig.putBundle("PARAM_LIST", bParams); bMain.putBundle("PLUGIN_CONFIG", bConfig); Intent i = new Intent(); i.setAction("com.symbol.datawedge.api.ACTION"); i.putExtra("com.symbol.datawedge.api.SET_CONFIG", bMain); i.putExtra("SEND_RESULT", "COMPLETE_RESULT"); this.sendBroadcast(i); }

OCR パラメータの設定

OCR パラメータを使用してプロファイルを作成/更新します。

void createBarcodeScanProfileWithOCR() { Bundle bMain = new Bundle(); bMain.putString("PROFILE_NAME", "OcrBarcodeApp"); bMain.putString("PROFILE_ENABLED", "true"); bMain.putString("CONFIG_MODE", "CREATE_IF_NOT_EXIST"); Bundle bConfig = new Bundle(); bConfig.putString("PLUGIN_NAME", "BARCODE"); bConfig.putString("RESET_CONFIG", "true"); Bundle bParams = new Bundle(); bParams.putString("scanner_selection", "auto"); bParams.putString("scanner_input_enabled", "true"); //Enable/Disable Decoders bParams.putString("decoder_ocr_a", "true"); //Enable or Disable OCR-A font bParams.putString("decoder_ocr_b", "true"); //Enable or Disable OCR-B font bParams.putString("decoder_micr", "true"); //Enable or Disable OCR MICR E13B font bParams.putString("decoder_us_currency", "true"); //Enable or Disable OCR US Currency font //Ocr A and B Variants bParams.putString("ocr_a_variant", "3"); //0 - FULL_ASCII, 1 - RESERVED_1, 2 - RESERVED_2,3 - BANKING bParams.putString("ocr_b_variant", "6"); //0 - FULL_ASCII, 1 - BANKING, 2 - LIMITED, 6 - ISBN_1, 7 - ISBN_2, 3 - TRAVEL_DOCUMENT_1, 8 - TRAVEL_DOCUMENT_2, 20 - TRAVEL_DOCUMENT_3, 4 - PASSPORT, 9 - VISA_TYPE_A, 10 - VISA_TYPE_B, 11 - ICAO_TRAVEL_DOCUMENT //Other OCR Params //Specify the orientation of an OCR String to be read bParams.putString("ocr_orientation", "1"); //Supported Values: 0 - DEGREE_0, 1 - DEGREE_270, 2 - DEGREE_180, 3 - DEGREE_90, 4 - OMNIDIRECTIONAL //Select number of lines to scan during OCR reading bParams.putString("ocr_lines", "2"); //Supported Values: 1 - LINE_1, 2 - LINE_2, 3 - LINE_3 //Select minimum number of OCR characters (not including spaces) per line to decode during OCR reading bParams.putString("ocr_min_chars", "10"); //Supported Values: 3 to 100 in steps of 1 //Select maximum number of OCR characters (including spaces) per line to decode during OCR reading bParams.putString("ocr_max_chars", "15"); //Supported Values: 3 to 100 in steps of 1 //OCR Subset defines a custom group of characters in place of a preset font variant bParams.putString("ocr_subset", "!\"#$%()*+,-./0123456789<>ABCDEFGHIJKLMNOPQRSTUVWXYZ abcdefghijklmnopqrstuvwxyz\\^|"); //Minimum length - 1, Maximum Length - 100 //Set field width of blank space to stop scanning during OCR reading bParams.putString("ocr_quiet_zone", "60"); //Supported Values: 20 to 99 in steps of 1 //This option creates a template for precisely matching scanned OCR characters to a desired input format. // Carefully constructing an OCR template eliminates scanning errors. // The template expression will be formed by numbers and letters. // The default is 99999999 which accepts any character OCR strings. bParams.putString("ocr_template", "AAA"); //Sets the Check Digit Modulus value for OCR Check Digit Calculation bParams.putString("ocr_check_digit_modulus", "10"); //Supported Values: 1 to 99 in steps of 1 //Sets OCR check digit multipliers for the character positions bParams.putString("ocr_check_digit_multiplier", "121212121212"); //Minimum length - 1, Maximum Length - 100 (Default - 121212121212) //Selects Check Digit Validation Scheme bParams.putString("ocr_check_digit_validation", "3"); //Supported Values: 0 - None, 3 - Product Add Left to Right, 1 - Product Add Right to Left, 4 - Digit Add Left to Right, 2 - Digit Add Right to Left, 5 - Product Add Right to Left Simple Remainder, 6 - Digit Add Right to Left Simple Remainder, 9 - Health Industry - HIBCC43 //Inverse OCR is white or light words on black or dark background. This option is used to select normal, inverse or both OCR scanning bParams.putString("inverse_ocr", "2"); //0 - REGULAR_ONLY, 1 - INVERSE_ONLY, 2 - AUTO_DISCRIMINATE bConfig.putBundle("PARAM_LIST", bParams); ArrayList<Bundle> bundlePluginConfig = new ArrayList<>(); bundlePluginConfig.add(bConfig); bMain.putParcelableArrayList("PLUGIN_CONFIG", bundlePluginConfig); Intent i = new Intent(); i.setAction(DATAWEDGE_API_ACTION); i.putExtra("SEND_RESULT", "LAST_RESULT"); i.putExtra("com.symbol.datawedge.api.SET_CONFIG", bMain); this.sendBroadcast(i); }

ナンバープレートの設定を行います

ワークフロー入力の OCR Wedge からナンバー プレート パラメータを設定します。

void setLicensePlateConfiguration() { Bundle bMain = new Bundle(); Bundle bConfigWorkflow = new Bundle(); ArrayList<Bundle> bundlePluginConfig = new ArrayList<>(); /*###### Configurations for Workflow Input [Start] ######*/ bConfigWorkflow.putString("PLUGIN_NAME", "WORKFLOW"); bConfigWorkflow.putString("RESET_CONFIG", "true"); //Reset existing configurations of barcode input plugin bConfigWorkflow.putString("workflow_input_enabled", "true"); bConfigWorkflow.putString("selected_workflow_name", "license_plate"); bConfigWorkflow.putString("workflow_input_source", "2"); //input source 1- imager, 2- camera /*###### Configurations for Workflow Input [Finish] ######*/ Bundle paramList = new Bundle(); paramList.putString("workflow_name","license_plate"); paramList.putString("workflow_input_source","2"); Bundle paramSetContainerDecoderModule = new Bundle(); paramSetContainerDecoderModule.putString("module","LicenseDecoderModule"); Bundle moduleContainerDecoderModule = new Bundle(); moduleContainerDecoderModule.putString("session_timeout", "15000"); moduleContainerDecoderModule.putString("output_image", "full"); moduleContainerDecoderModule.putString("scanMode", "unitedstates"); //unitedstates, auto paramSetContainerDecoderModule.putBundle("module_params",moduleContainerDecoderModule); Bundle paramSetCameraModule = new Bundle(); paramSetCameraModule.putString("module","CameraModule"); Bundle moduleCameraModule = new Bundle(); moduleCameraModule.putString("illumination", "on"); paramSetCameraModule.putBundle("module_params",moduleCameraModule); Bundle paramSetFeedbackModule = new Bundle(); paramSetFeedbackModule.putString("module","FeedbackModule"); Bundle moduleParamsFeedback = new Bundle(); moduleParamsFeedback.putString("decode_haptic_feedback", "true"); moduleParamsFeedback.putString("decode_audio_feedback_uri", "Heaven"); moduleParamsFeedback.putString("volume_slider_type", "2");// 0- Ringer, 1- Music and Media, 2-Alarms, 3- Notification moduleParamsFeedback.putString("decoding_led_feedback", "false"); paramSetFeedbackModule.putBundle("module_params",moduleParamsFeedback); ArrayList<Bundle> paramSetList = new ArrayList<>(); paramSetList.add(paramSetContainerDecoderModule); paramSetList.add(paramSetFeedbackModule); paramSetList.add(paramSetCameraModule); paramList.putParcelableArrayList("workflow_params", paramSetList); ArrayList<Bundle> workFlowList = new ArrayList<>(); workFlowList.add(paramList); bConfigWorkflow.putParcelableArrayList("PARAM_LIST", workFlowList); bundlePluginConfig.add(bConfigWorkflow); /*###### Configurations for Intent Output [Start] ######*/ Bundle bConfigIntent = new Bundle(); Bundle bParamsIntent = new Bundle(); bConfigIntent.putString("PLUGIN_NAME", "INTENT"); bConfigIntent.putString("RESET_CONFIG", "true"); //Reset existing configurations of intent output plugin bParamsIntent.putString("intent_output_enabled", "true"); //Enable intent output plugin bParamsIntent.putString("intent_action", INTENT_OUTPUT_ACTION); //Set the intent action bParamsIntent.putString("intent_category", "android.intent.category.DEFAULT"); //Set a category for intent bParamsIntent.putInt("intent_delivery", 2); // Set intent delivery mechanism, Use "0" for Start Activity, "1" for Start Service, "2" for Broadcast, "3" for start foreground service bParamsIntent.putString("intent_use_content_provider", "true"); //Enable content provider bConfigIntent.putBundle("PARAM_LIST", bParamsIntent); bundlePluginConfig.add(bConfigIntent); /*###### Configurations for Intent Output [Finish] ######*/ //Putting the INTENT and BARCODE plugin settings to the PLUGIN_CONFIG extra bMain.putParcelableArrayList("PLUGIN_CONFIG", bundlePluginConfig); /*###### Associate this application to the profile [Start] ######*/ Bundle configApplicationList = new Bundle(); configApplicationList.putString("PACKAGE_NAME",getPackageName()); configApplicationList.putStringArray("ACTIVITY_LIST", new String[]{"*"}); bMain.putParcelableArray("APP_LIST", new Bundle[]{ configApplicationList }); /* ###### Associate this application to the profile [Finish] ######*/ bMain.putString("PROFILE_NAME", "Demo"); //Specify the profile name bMain.putString("PROFILE_ENABLED", "true"); //Enable the profile bMain.putString("CONFIG_MODE", "CREATE_IF_NOT_EXIST"); bMain.putString("RESET_CONFIG", "true"); Intent iSetConfig = new Intent(); iSetConfig.setAction("com.symbol.datawedge.api.ACTION"); iSetConfig.setPackage("com.symbol.datawedge"); iSetConfig.putExtra("com.symbol.datawedge.api.SET_CONFIG", bMain); iSetConfig.putExtra("SEND_RESULT", "COMPLETE_RESULT"); iSetConfig.putExtra("COMMAND_IDENTIFIER", "CREATE_PROFILE"); this.sendBroadcast(iSetConfig); }

身分証明書の設定を行います

ワークフロー入力の OCR Wedge から身分証明書パラメータを設定します。

void setIdentificationDocumentConfiguration() { Bundle bMain = new Bundle(); Bundle bConfigWorkflow = new Bundle(); ArrayList<Bundle> bundlePluginConfig = new ArrayList<>(); /*###### Configurations for Workflow Input [Start] ######*/ bConfigWorkflow.putString("PLUGIN_NAME", "WORKFLOW"); bConfigWorkflow.putString("RESET_CONFIG", "true"); //Reset existing configurations of barcode input plugin bConfigWorkflow.putString("workflow_input_enabled", "true"); bConfigWorkflow.putString("selected_workflow_name", "id_scanning"); bConfigWorkflow.putString("workflow_input_source", "2"); //input source 1- imager, 2- camera /*###### Configurations for Workflow Input [Finish] ######*/ Bundle paramList = new Bundle(); paramList.putString("workflow_name","id_scanning"); paramList.putString("workflow_input_source","2"); Bundle paramSetContainerDecoderModule = new Bundle(); paramSetContainerDecoderModule.putString("module","IDDecoderModule"); Bundle moduleContainerDecoderModule = new Bundle(); moduleContainerDecoderModule.putString("session_timeout", "12000"); moduleContainerDecoderModule.putString("output_image", "none"); paramSetContainerDecoderModule.putBundle("module_params",moduleContainerDecoderModule); Bundle paramSetCameraModule = new Bundle(); paramSetCameraModule.putString("module","CameraModule"); Bundle moduleCameraModule = new Bundle(); moduleCameraModule.putString("illumination", "off"); paramSetCameraModule.putBundle("module_params",moduleCameraModule); Bundle paramSetFeedbackModule = new Bundle(); paramSetFeedbackModule.putString("module","FeedbackModule"); Bundle moduleParamsFeedback = new Bundle(); moduleParamsFeedback.putString("decode_haptic_feedback", "false"); moduleParamsFeedback.putString("decode_audio_feedback_uri", "Iridium"); moduleParamsFeedback.putString("volume_slider_type", "1");// 0- Ringer, 1- Music and Media, 2-Alarms, 3- Notification moduleParamsFeedback.putString("decoding_led_feedback", "true"); paramSetFeedbackModule.putBundle("module_params",moduleParamsFeedback); ArrayList<Bundle> paramSetList = new ArrayList<>(); paramSetList.add(paramSetContainerDecoderModule); paramSetList.add(paramSetFeedbackModule); paramSetList.add(paramSetCameraModule); paramList.putParcelableArrayList("workflow_params", paramSetList); ArrayList<Bundle> workFlowList = new ArrayList<>(); workFlowList.add(paramList); bConfigWorkflow.putParcelableArrayList("PARAM_LIST", workFlowList); bundlePluginConfig.add(bConfigWorkflow); /*###### Configurations for Intent Output [Start] ######*/ Bundle bConfigIntent = new Bundle(); Bundle bParamsIntent = new Bundle(); bConfigIntent.putString("PLUGIN_NAME", "INTENT"); bConfigIntent.putString("RESET_CONFIG", "true"); //Reset existing configurations of intent output plugin bParamsIntent.putString("intent_output_enabled", "true"); //Enable intent output plugin bParamsIntent.putString("intent_action", INTENT_OUTPUT_ACTION); //Set the intent action bParamsIntent.putString("intent_category", "android.intent.category.DEFAULT"); //Set a category for intent bParamsIntent.putInt("intent_delivery", 2); // Set intent delivery mechanism, Use "0" for Start Activity, "1" for Start Service, "2" for Broadcast, "3" for start foreground service bParamsIntent.putString("intent_use_content_provider", "true"); //Enable content provider bConfigIntent.putBundle("PARAM_LIST", bParamsIntent); bundlePluginConfig.add(bConfigIntent); /*###### Configurations for Intent Output [Finish] ######*/ //Putting the INTENT and BARCODE plugin settings to the PLUGIN_CONFIG extra bMain.putParcelableArrayList("PLUGIN_CONFIG", bundlePluginConfig); /*###### Associate this application to the profile [Start] ######*/ Bundle configApplicationList = new Bundle(); configApplicationList.putString("PACKAGE_NAME",getPackageName()); configApplicationList.putStringArray("ACTIVITY_LIST", new String[]{"*"}); bMain.putParcelableArray("APP_LIST", new Bundle[]{ configApplicationList }); /* ###### Associate this application to the profile [Finish] ######*/ bMain.putString("PROFILE_NAME", "Demo"); //Specify the profile name bMain.putString("PROFILE_ENABLED", "true"); //Enable the profile bMain.putString("CONFIG_MODE", "CREATE_IF_NOT_EXIST"); bMain.putString("RESET_CONFIG", "true"); Intent iSetConfig = new Intent(); iSetConfig.setAction("com.symbol.datawedge.api.ACTION"); iSetConfig.setPackage("com.symbol.datawedge"); iSetConfig.putExtra("com.symbol.datawedge.api.SET_CONFIG", bMain); iSetConfig.putExtra("SEND_RESULT", "COMPLETE_RESULT"); iSetConfig.putExtra("COMMAND_IDENTIFIER", "CREATE_PROFILE"); this.sendBroadcast(iSetConfig); }

車両識別番号 (VIN) の設定を行います

ワークフロー入力の OCR Wedge から VIN を設定します。

void setVehicleIdentificationConfiguration() { Bundle bMain = new Bundle(); Bundle bConfigWorkflow = new Bundle(); ArrayList<Bundle> bundlePluginConfig = new ArrayList<>(); /*###### Configurations for Workflow Input [Start] ######*/ bConfigWorkflow.putString("PLUGIN_NAME", "WORKFLOW"); bConfigWorkflow.putString("RESET_CONFIG", "true"); //Reset existing configurations of barcode input plugin bConfigWorkflow.putString("workflow_input_enabled", "true"); bConfigWorkflow.putString("selected_workflow_name", "vin_number"); bConfigWorkflow.putString("workflow_input_source", "2"); //input source 1- imager, 2- camera /*###### Configurations for Workflow Input [Finish] ######*/ Bundle paramList = new Bundle(); paramList.putString("workflow_name","vin_number"); paramList.putString("workflow_input_source","2"); Bundle paramSetContainerDecoderModule = new Bundle(); paramSetContainerDecoderModule.putString("module","VinDecoderModule"); Bundle moduleContainerDecoderModule = new Bundle(); moduleContainerDecoderModule.putString("session_timeout", "15000"); moduleContainerDecoderModule.putString("output_image", "full"); paramSetContainerDecoderModule.putBundle("module_params",moduleContainerDecoderModule); Bundle paramSetCameraModule = new Bundle(); paramSetCameraModule.putString("module","CameraModule"); Bundle moduleCameraModule = new Bundle(); moduleCameraModule.putString("illumination", "on"); paramSetCameraModule.putBundle("module_params",moduleCameraModule); Bundle paramSetFeedbackModule = new Bundle(); paramSetFeedbackModule.putString("module","FeedbackModule"); Bundle moduleParamsFeedback = new Bundle(); moduleParamsFeedback.putString("decode_haptic_feedback", "true"); moduleParamsFeedback.putString("decode_audio_feedback_uri", "Heaven"); moduleParamsFeedback.putString("volume_slider_type", "2");// 0- Ringer, 1- Music and Media, 2-Alarms, 3- Notification moduleParamsFeedback.putString("decoding_led_feedback", "false"); paramSetFeedbackModule.putBundle("module_params",moduleParamsFeedback); ArrayList<Bundle> paramSetList = new ArrayList<>(); paramSetList.add(paramSetContainerDecoderModule); paramSetList.add(paramSetFeedbackModule); paramSetList.add(paramSetCameraModule); paramList.putParcelableArrayList("workflow_params", paramSetList); ArrayList<Bundle> workFlowList = new ArrayList<>(); workFlowList.add(paramList); bConfigWorkflow.putParcelableArrayList("PARAM_LIST", workFlowList); bundlePluginConfig.add(bConfigWorkflow); /*###### Configurations for Intent Output [Start] ######*/ Bundle bConfigIntent = new Bundle(); Bundle bParamsIntent = new Bundle(); bConfigIntent.putString("PLUGIN_NAME", "INTENT"); bConfigIntent.putString("RESET_CONFIG", "true"); //Reset existing configurations of intent output plugin bParamsIntent.putString("intent_output_enabled", "true"); //Enable intent output plugin bParamsIntent.putString("intent_action", INTENT_OUTPUT_ACTION); //Set the intent action bParamsIntent.putString("intent_category", "android.intent.category.DEFAULT"); //Set a category for intent bParamsIntent.putInt("intent_delivery", 2); // Set intent delivery mechanism, Use "0" for Start Activity, "1" for Start Service, "2" for Broadcast, "3" for start foreground service bParamsIntent.putString("intent_use_content_provider", "true"); //Enable content provider bConfigIntent.putBundle("PARAM_LIST", bParamsIntent); bundlePluginConfig.add(bConfigIntent); /*###### Configurations for Intent Output [Finish] ######*/ //Putting the INTENT and BARCODE plugin settings to the PLUGIN_CONFIG extra bMain.putParcelableArrayList("PLUGIN_CONFIG", bundlePluginConfig); /*###### Associate this application to the profile [Start] ######*/ Bundle configApplicationList = new Bundle(); configApplicationList.putString("PACKAGE_NAME",getPackageName()); configApplicationList.putStringArray("ACTIVITY_LIST", new String[]{"*"}); bMain.putParcelableArray("APP_LIST", new Bundle[]{ configApplicationList }); /* ###### Associate this application to the profile [Finish] ######*/ bMain.putString("PROFILE_NAME", "Demo"); //Specify the profile name bMain.putString("PROFILE_ENABLED", "true"); //Enable the profile bMain.putString("CONFIG_MODE", "CREATE_IF_NOT_EXIST"); bMain.putString("RESET_CONFIG", "true"); Intent iSetConfig = new Intent(); iSetConfig.setAction("com.symbol.datawedge.api.ACTION"); iSetConfig.setPackage("com.symbol.datawedge"); iSetConfig.putExtra("com.symbol.datawedge.api.SET_CONFIG", bMain); iSetConfig.putExtra("SEND_RESULT", "COMPLETE_RESULT"); iSetConfig.putExtra("COMMAND_IDENTIFIER", "CREATE_PROFILE"); this.sendBroadcast(iSetConfig); }

タイヤ識別番号 (TIN) の設定を行います

ワークフロー入力の OCR Wedge から TIN を設定します。

void setTireIdentificationConfiguration() { Bundle bMain = new Bundle(); Bundle bConfigWorkflow = new Bundle(); ArrayList<Bundle> bundlePluginConfig = new ArrayList<>(); /*###### Configurations for Workflow Input [Start] ######*/ bConfigWorkflow.putString("PLUGIN_NAME", "WORKFLOW"); bConfigWorkflow.putString("RESET_CONFIG", "true"); //Reset existing configurations of barcode input plugin bConfigWorkflow.putString("workflow_input_enabled", "true"); bConfigWorkflow.putString("selected_workflow_name", "tin_number"); bConfigWorkflow.putString("workflow_input_source", "2"); //input source 1- imager, 2- camera /*###### Configurations for Workflow Input [Finish] ######*/ Bundle paramList = new Bundle(); paramList.putString("workflow_name","tin_number"); paramList.putString("workflow_input_source","2"); Bundle paramSetContainerDecoderModule = new Bundle(); paramSetContainerDecoderModule.putString("module","TinDecoderModule"); Bundle moduleContainerDecoderModule = new Bundle(); moduleContainerDecoderModule.putString("session_timeout", "15000"); moduleContainerDecoderModule.putString("output_image", "full"); moduleContainerDecoderModule.putString("scanMode", "STRICT"); //STRICT,Flexible paramSetContainerDecoderModule.putBundle("module_params",moduleContainerDecoderModule); Bundle paramSetCameraModule = new Bundle(); paramSetCameraModule.putString("module","CameraModule"); Bundle moduleCameraModule = new Bundle(); moduleCameraModule.putString("illumination", "on"); paramSetCameraModule.putBundle("module_params",moduleCameraModule); Bundle paramSetFeedbackModule = new Bundle(); paramSetFeedbackModule.putString("module","FeedbackModule"); Bundle moduleParamsFeedback = new Bundle(); moduleParamsFeedback.putString("decode_haptic_feedback", "true"); moduleParamsFeedback.putString("decode_audio_feedback_uri", "Heaven"); moduleParamsFeedback.putString("volume_slider_type", "3");// 0- Ringer, 1- Music and Media, 2-Alarms, 3- Notification moduleParamsFeedback.putString("decoding_led_feedback", "false"); paramSetFeedbackModule.putBundle("module_params",moduleParamsFeedback); ArrayList<Bundle> paramSetList = new ArrayList<>(); paramSetList.add(paramSetContainerDecoderModule); paramSetList.add(paramSetFeedbackModule); paramSetList.add(paramSetCameraModule); paramList.putParcelableArrayList("workflow_params", paramSetList); ArrayList<Bundle> workFlowList = new ArrayList<>(); workFlowList.add(paramList); bConfigWorkflow.putParcelableArrayList("PARAM_LIST", workFlowList); bundlePluginConfig.add(bConfigWorkflow); /*###### Configurations for Intent Output [Start] ######*/ Bundle bConfigIntent = new Bundle(); Bundle bParamsIntent = new Bundle(); bConfigIntent.putString("PLUGIN_NAME", "INTENT"); bConfigIntent.putString("RESET_CONFIG", "true"); //Reset existing configurations of intent output plugin bParamsIntent.putString("intent_output_enabled", "true"); //Enable intent output plugin bParamsIntent.putString("intent_action", INTENT_OUTPUT_ACTION); //Set the intent action bParamsIntent.putString("intent_category", "android.intent.category.DEFAULT"); //Set a category for intent bParamsIntent.putInt("intent_delivery", 2); // Set intent delivery mechanism, Use "0" for Start Activity, "1" for Start Service, "2" for Broadcast, "3" for start foreground service bParamsIntent.putString("intent_use_content_provider", "true"); //Enable content provider bConfigIntent.putBundle("PARAM_LIST", bParamsIntent); bundlePluginConfig.add(bConfigIntent); /*###### Configurations for Intent Output [Finish] ######*/ //Putting the INTENT and BARCODE plugin settings to the PLUGIN_CONFIG extra bMain.putParcelableArrayList("PLUGIN_CONFIG", bundlePluginConfig); /*###### Associate this application to the profile [Start] ######*/ Bundle configApplicationList = new Bundle(); configApplicationList.putString("PACKAGE_NAME",getPackageName()); configApplicationList.putStringArray("ACTIVITY_LIST", new String[]{"*"}); bMain.putParcelableArray("APP_LIST", new Bundle[]{ configApplicationList }); /* ###### Associate this application to the profile [Finish] ######*/ bMain.putString("PROFILE_NAME", "Demo"); //Specify the profile name bMain.putString("PROFILE_ENABLED", "true"); //Enable the profile bMain.putString("CONFIG_MODE", "CREATE_IF_NOT_EXIST"); bMain.putString("RESET_CONFIG", "true"); Intent iSetConfig = new Intent(); iSetConfig.setAction("com.symbol.datawedge.api.ACTION"); iSetConfig.setPackage("com.symbol.datawedge"); iSetConfig.putExtra("com.symbol.datawedge.api.SET_CONFIG", bMain); iSetConfig.putExtra("SEND_RESULT", "COMPLETE_RESULT"); iSetConfig.putExtra("COMMAND_IDENTIFIER", "CREATE_PROFILE"); this.sendBroadcast(iSetConfig); }

出荷コンテナ ID の設定

ワークフロー入力の OCR Wedge から出荷コンテナ ID パラメータを設定します。

void setShippingContainerIdConfiguration() { Bundle bMain = new Bundle(); Bundle bConfigWorkflow = new Bundle(); ArrayList<Bundle> bundlePluginConfig = new ArrayList<>(); /*###### Configurations for Workflow Input [Start] ######*/ bConfigWorkflow.putString("PLUGIN_NAME", "WORKFLOW"); bConfigWorkflow.putString("RESET_CONFIG", "true"); //Reset existing configurations of barcode input plugin bConfigWorkflow.putString("workflow_input_enabled", "true"); bConfigWorkflow.putString("selected_workflow_name", "container_scanning"); bConfigWorkflow.putString("workflow_input_source", "2"); /*###### Configurations for Workflow Input [Finish] ######*/ Bundle paramList = new Bundle(); paramList.putString("workflow_name","container_scanning"); paramList.putString("workflow_input_source","2"); Bundle paramSetContainerDecoderModule = new Bundle(); paramSetContainerDecoderModule.putString("module","ContainerDecoderModule"); Bundle moduleContainerDecoderModule = new Bundle(); moduleContainerDecoderModule.putString("session_timeout", "16000"); moduleContainerDecoderModule.putString("output_image", "full"); paramSetContainerDecoderModule.putBundle("module_params",moduleContainerDecoderModule); Bundle paramSetCameraModule = new Bundle(); paramSetCameraModule.putString("module","CameraModule"); Bundle moduleCameraModule = new Bundle(); moduleCameraModule.putString("illumination", "on"); moduleCameraModule.putString("zoom", "3"); //set value 1-8 default is 1 paramSetCameraModule.putBundle("module_params",moduleCameraModule); Bundle paramSetFeedbackModule = new Bundle(); paramSetFeedbackModule.putString("module","FeedbackModule"); Bundle moduleParamsFeedback = new Bundle(); moduleParamsFeedback.putString("decode_haptic_feedback", "true"); moduleParamsFeedback.putString("decode_audio_feedback_uri", "Drip"); moduleParamsFeedback.putString("volume_slider_type", "2"); moduleParamsFeedback.putString("decoding_led_feedback", "true"); paramSetFeedbackModule.putBundle("module_params",moduleParamsFeedback); ArrayList<Bundle> paramSetList = new ArrayList<>(); paramSetList.add(paramSetContainerDecoderModule); paramSetList.add(paramSetFeedbackModule); paramSetList.add(paramSetCameraModule); paramList.putParcelableArrayList("workflow_params", paramSetList); ArrayList<Bundle> workFlowList = new ArrayList<>(); workFlowList.add(paramList); bConfigWorkflow.putParcelableArrayList("PARAM_LIST", workFlowList); bundlePluginConfig.add(bConfigWorkflow); /*###### Configurations for Intent Output [Start] ######*/ Bundle bConfigIntent = new Bundle(); Bundle bParamsIntent = new Bundle(); bConfigIntent.putString("PLUGIN_NAME", "INTENT"); bConfigIntent.putString("RESET_CONFIG", "true"); //Reset existing configurations of intent output plugin bParamsIntent.putString("intent_output_enabled", "true"); //Enable intent output plugin bParamsIntent.putString("intent_action", INTENT_OUTPUT_ACTION); //Set the intent action bParamsIntent.putString("intent_category", "android.intent.category.DEFAULT"); //Set a category for intent bParamsIntent.putInt("intent_delivery", 2); // Set intent delivery mechanism, Use "0" for Start Activity, "1" for Start Service, "2" for Broadcast, "3" for start foreground service bParamsIntent.putString("intent_use_content_provider", "true"); //Enable content provider bConfigIntent.putBundle("PARAM_LIST", bParamsIntent); bundlePluginConfig.add(bConfigIntent); /*###### Configurations for Intent Output [Finish] ######*/ //Putting the INTENT and BARCODE plugin settings to the PLUGIN_CONFIG extra bMain.putParcelableArrayList("PLUGIN_CONFIG", bundlePluginConfig); /*###### Associate this application to the profile [Start] ######*/ Bundle configApplicationList = new Bundle(); configApplicationList.putString("PACKAGE_NAME",getPackageName()); configApplicationList.putStringArray("ACTIVITY_LIST", new String[]{"*"}); bMain.putParcelableArray("APP_LIST", new Bundle[]{ configApplicationList }); /* ###### Associate this application to the profile [Finish] ######*/ bMain.putString("PROFILE_NAME", "Demo"); //Specify the profile name bMain.putString("PROFILE_ENABLED", "true"); //Enable the profile bMain.putString("CONFIG_MODE", "CREATE_IF_NOT_EXIST"); bMain.putString("RESET_CONFIG", "true"); Intent iSetConfig = new Intent(); iSetConfig.setAction("com.symbol.datawedge.api.ACTION"); iSetConfig.setPackage("com.symbol.datawedge"); iSetConfig.putExtra("com.symbol.datawedge.api.SET_CONFIG", bMain); iSetConfig.putExtra("SEND_RESULT", "COMPLETE_RESULT"); iSetConfig.putExtra("COMMAND_IDENTIFIER", "CREATE_PROFILE"); this.sendBroadcast(iSetConfig); }

メーターの設定を行います

ワークフロー入力の OCR Wedge からメーター パラメータを設定します。

void setMeterConfiguration() { Bundle bMain = new Bundle(); Bundle bConfigWorkflow = new Bundle(); ArrayList<Bundle> bundlePluginConfig = new ArrayList<>(); /*###### Configurations for Workflow Input [Start] ######*/ bConfigWorkflow.putString("PLUGIN_NAME", "WORKFLOW"); bConfigWorkflow.putString("RESET_CONFIG", "true"); //Reset existing configurations of barcode input plugin bConfigWorkflow.putString("workflow_input_enabled", "true"); bConfigWorkflow.putString("selected_workflow_name", "meter_reading"); bConfigWorkflow.putString("workflow_input_source", "2"); //input source 1- imager, 2- camera /*###### Configurations for Workflow Input [Finish] ######*/ Bundle paramList = new Bundle(); paramList.putString("workflow_name","meter_reading"); paramList.putString("workflow_input_source","2"); Bundle paramSetContainerDecoderModule = new Bundle(); paramSetContainerDecoderModule.putString("module","MeterReaderModule"); Bundle moduleContainerDecoderModule = new Bundle(); moduleContainerDecoderModule.putString("session_timeout", "15000"); moduleContainerDecoderModule.putString("output_image", "full"); moduleContainerDecoderModule.putString("scanMode", "DIAL_METER"); //DIAL_METER, AUTO_ANALOG_DIGITAL_METER paramSetContainerDecoderModule.putBundle("module_params",moduleContainerDecoderModule); Bundle paramSetCameraModule = new Bundle(); paramSetCameraModule.putString("module","CameraModule"); Bundle moduleCameraModule = new Bundle(); moduleCameraModule.putString("illumination", "on"); paramSetCameraModule.putBundle("module_params",moduleCameraModule); Bundle paramSetFeedbackModule = new Bundle(); paramSetFeedbackModule.putString("module","FeedbackModule"); Bundle moduleParamsFeedback = new Bundle(); moduleParamsFeedback.putString("decode_haptic_feedback", "true"); moduleParamsFeedback.putString("decode_audio_feedback_uri", "Heaven"); moduleParamsFeedback.putString("volume_slider_type", "2"); moduleParamsFeedback.putString("decoding_led_feedback", "false"); paramSetFeedbackModule.putBundle("module_params",moduleParamsFeedback); ArrayList<Bundle> paramSetList = new ArrayList<>(); paramSetList.add(paramSetContainerDecoderModule); paramSetList.add(paramSetFeedbackModule); paramSetList.add(paramSetCameraModule); paramList.putParcelableArrayList("workflow_params", paramSetList); ArrayList<Bundle> workFlowList = new ArrayList<>(); workFlowList.add(paramList); bConfigWorkflow.putParcelableArrayList("PARAM_LIST", workFlowList); bundlePluginConfig.add(bConfigWorkflow); /*###### Configurations for Intent Output [Start] ######*/ Bundle bConfigIntent = new Bundle(); Bundle bParamsIntent = new Bundle(); bConfigIntent.putString("PLUGIN_NAME", "INTENT"); bConfigIntent.putString("RESET_CONFIG", "true"); //Reset existing configurations of intent output plugin bParamsIntent.putString("intent_output_enabled", "true"); //Enable intent output plugin bParamsIntent.putString("intent_action", INTENT_OUTPUT_ACTION); //Set the intent action bParamsIntent.putString("intent_category", "android.intent.category.DEFAULT"); //Set a category for intent bParamsIntent.putInt("intent_delivery", 2); // Set intent delivery mechanism, Use "0" for Start Activity, "1" for Start Service, "2" for Broadcast, "3" for start foreground service bParamsIntent.putString("intent_use_content_provider", "true"); //Enable content provider bConfigIntent.putBundle("PARAM_LIST", bParamsIntent); bundlePluginConfig.add(bConfigIntent); /*###### Configurations for Intent Output [Finish] ######*/ //Putting the INTENT and BARCODE plugin settings to the PLUGIN_CONFIG extra bMain.putParcelableArrayList("PLUGIN_CONFIG", bundlePluginConfig); /*###### Associate this application to the profile [Start] ######*/ Bundle configApplicationList = new Bundle(); configApplicationList.putString("PACKAGE_NAME",getPackageName()); configApplicationList.putStringArray("ACTIVITY_LIST", new String[]{"*"}); bMain.putParcelableArray("APP_LIST", new Bundle[]{ configApplicationList }); /* ###### Associate this application to the profile [Finish] ######*/ bMain.putString("PROFILE_NAME", "Demo"); //Specify the profile name bMain.putString("PROFILE_ENABLED", "true"); //Enable the profile bMain.putString("CONFIG_MODE", "CREATE_IF_NOT_EXIST"); bMain.putString("RESET_CONFIG", "true"); Intent iSetConfig = new Intent(); iSetConfig.setAction("com.symbol.datawedge.api.ACTION"); iSetConfig.setPackage("com.symbol.datawedge"); iSetConfig.putExtra("com.symbol.datawedge.api.SET_CONFIG", bMain); iSetConfig.putExtra("SEND_RESULT", "COMPLETE_RESULT"); iSetConfig.putExtra("COMMAND_IDENTIFIER", "CREATE_PROFILE"); this.sendBroadcast(iSetConfig); }

フリーフォーム イメージ キャプチャの設定を行います

ワークフロー入力のイメージ キャプチャからフリーフォーム イメージ キャプチャ パラメータを設定します。

void setFreeFormConfiguration() { Bundle bMain = new Bundle(); Bundle bConfigWorkflow = new Bundle(); ArrayList<Bundle> bundlePluginConfig = new ArrayList<>(); /*###### Configurations for Workflow Input [Start] ######*/ bConfigWorkflow.putString("PLUGIN_NAME", "WORKFLOW"); bConfigWorkflow.putString("RESET_CONFIG", "true"); //Reset existing configurations of barcode input plugin bConfigWorkflow.putString("workflow_input_enabled", "true"); bConfigWorkflow.putString("selected_workflow_name", "free_form_capture"); bConfigWorkflow.putString("workflow_input_source", "2"); //input source 1- imager, 2- camera /*###### Configurations for Workflow Input [Finish] ######*/ Bundle paramList = new Bundle(); paramList.putString("workflow_name","free_form_capture"); paramList.putString("workflow_input_source","2"); Bundle paramSetContainerDecoderModule = new Bundle(); paramSetContainerDecoderModule.putString("module","BarcodeTrackerModule"); Bundle moduleContainerDecoderModule = new Bundle(); moduleContainerDecoderModule.putString("session_timeout", "16000"); moduleContainerDecoderModule.putString("illumination", "off"); moduleContainerDecoderModule.putString("decode_and_highlight_barcodes", "1"); //1-off, 2-highlight, 3- decode and highlight paramSetContainerDecoderModule.putBundle("module_params",moduleContainerDecoderModule); Bundle paramSetFeedbackModule = new Bundle(); paramSetFeedbackModule.putString("module","FeedbackModule"); Bundle moduleParamsFeedback = new Bundle(); moduleParamsFeedback.putString("decode_haptic_feedback", "false"); moduleParamsFeedback.putString("decode_audio_feedback_uri", "Electra"); moduleParamsFeedback.putString("volume_slider_type", "0");// 0- Ringer, 1- Music and Media, 2-Alarms, 3- Notification moduleParamsFeedback.putString("decoding_led_feedback", "true"); paramSetFeedbackModule.putBundle("module_params",moduleParamsFeedback); ArrayList<Bundle> paramSetList = new ArrayList<>(); paramSetList.add(paramSetContainerDecoderModule); paramSetList.add(paramSetFeedbackModule); paramList.putParcelableArrayList("workflow_params", paramSetList); ArrayList<Bundle> workFlowList = new ArrayList<>(); workFlowList.add(paramList); bConfigWorkflow.putParcelableArrayList("PARAM_LIST", workFlowList); bundlePluginConfig.add(bConfigWorkflow); /*###### Configurations for Intent Output [Start] ######*/ Bundle bConfigIntent = new Bundle(); Bundle bParamsIntent = new Bundle(); bConfigIntent.putString("PLUGIN_NAME", "INTENT"); bConfigIntent.putString("RESET_CONFIG", "true"); //Reset existing configurations of intent output plugin bParamsIntent.putString("intent_output_enabled", "true"); //Enable intent output plugin bParamsIntent.putString("intent_action", INTENT_OUTPUT_ACTION); //Set the intent action bParamsIntent.putString("intent_category", "android.intent.category.DEFAULT"); //Set a category for intent bParamsIntent.putInt("intent_delivery", 2); // Set intent delivery mechanism, Use "0" for Start Activity, "1" for Start Service, "2" for Broadcast, "3" for start foreground service bParamsIntent.putString("intent_use_content_provider", "true"); //Enable content provider bConfigIntent.putBundle("PARAM_LIST", bParamsIntent); bundlePluginConfig.add(bConfigIntent); /*###### Configurations for Intent Output [Finish] ######*/ //Putting the INTENT and BARCODE plugin settings to the PLUGIN_CONFIG extra bMain.putParcelableArrayList("PLUGIN_CONFIG", bundlePluginConfig); /*###### Associate this application to the profile [Start] ######*/ Bundle configApplicationList = new Bundle(); configApplicationList.putString("PACKAGE_NAME",getPackageName()); configApplicationList.putStringArray("ACTIVITY_LIST", new String[]{"*"}); bMain.putParcelableArray("APP_LIST", new Bundle[]{ configApplicationList }); /* ###### Associate this application to the profile [Finish] ######*/ bMain.putString("PROFILE_NAME", "Demo"); //Specify the profile name bMain.putString("PROFILE_ENABLED", "true"); //Enable the profile bMain.putString("CONFIG_MODE", "CREATE_IF_NOT_EXIST"); bMain.putString("RESET_CONFIG", "true"); Intent iSetConfig = new Intent(); iSetConfig.setAction("com.symbol.datawedge.api.ACTION"); iSetConfig.setPackage("com.symbol.datawedge"); iSetConfig.putExtra("com.symbol.datawedge.api.SET_CONFIG", bMain); iSetConfig.putExtra("SEND_RESULT", "COMPLETE_RESULT"); iSetConfig.putExtra("COMMAND_IDENTIFIER", "CREATE_PROFILE"); this.sendBroadcast(iSetConfig); }

RFID 入力構成の設定

private void createProfile() {  // Create bundle for profile configuration Bundle setConfigBundle = new Bundle(); setConfigBundle.putString("PROFILE_NAME","SampleConfigApi"); setConfigBundle.putString("PROFILE_ENABLED", "true"); setConfigBundle.putString("CONFIG_MODE","CREATE_IF_NOT_EXIST"); setConfigBundle.putString("RESET_CONFIG", "false"); // Associate profile with this app Bundle appConfig = new Bundle(); appConfig.putString("PACKAGE_NAME", getPackageName()); appConfig.putStringArray("ACTIVITY_LIST", new String[]{"*"}); setConfigBundle.putParcelableArray("APP_LIST", new Bundle[]{appConfig}); setConfigBundle.remove("PLUGIN_CONFIG"); // Set RFID configuration Bundle rfidConfigParamList = new Bundle(); rfidConfigParamList.putString("rfid_input_enabled", "true"); rfidConfigParamList.putString("rfid_beeper_enable", "true"); rfidConfigParamList.putString("rfid_led_enable", "true"); rfidConfigParamList.putString("rfid_antenna_transmit_power", "30"); rfidConfigParamList.putString("rfid_memory_bank", "2"); rfidConfigParamList.putString("rfid_session", "1"); rfidConfigParamList.putString("rfid_trigger_mode", "1"); rfidConfigParamList.putString("rfid_filter_duplicate_tags", "true"); rfidConfigParamList.putString("rfid_hardware_trigger_enabled", "true"); rfidConfigParamList.putString("rfid_tag_read_duration", "250"); // Pre-filter rfidConfigParamList.putString("rfid_pre_filter_enable", "true"); rfidConfigParamList.putString("rfid_pre_filter_tag_pattern", "3EC"); rfidConfigParamList.putString("rfid_pre_filter_target", "2"); rfidConfigParamList.putString("rfid_pre_filter_memory_bank", "2"); rfidConfigParamList.putString("rfid_pre_filter_offset", "2"); rfidConfigParamList.putString("rfid_pre_filter_action", "2"); // Post-filter rfidConfigParamList.putString("rfid_post_filter_enable", "true"); rfidConfigParamList.putString("rfid_post_filter_no_of_tags_to_read", "2"); rfidConfigParamList.putString("rfid_post_filter_rssi", "-54"); Bundle rfidConfigBundle = new Bundle(); rfidConfigBundle.putString("PLUGIN_NAME", "RFID"); rfidConfigBundle.putString("RESET_CONFIG", "true"); rfidConfigBundle.putBundle("PARAM_LIST", rfidConfigParamList); // Configure intent output for captured data to be sent to this app Bundle intentConfig = new Bundle(); intentConfig.putString("PLUGIN_NAME", "INTENT"); intentConfig.putString("RESET_CONFIG", "true"); Bundle intentProps = new Bundle(); intentProps.putString("intent_output_enabled", "true"); intentProps.putString("intent_action", "com.zebra.rfid.rwdemo.RWDEMO"); intentProps.putString("intent_category", "android.intent.category.DEFAULT"); intentProps.putString("intent_delivery", "0"); intentConfig.putBundle("PARAM_LIST", intentProps); // Add configurations into a collection ArrayList<Parcelable> configBundles = new ArrayList<>(); configBundles.add(rfidConfigBundle); configBundles.add(intentConfig); setConfigBundle.putParcelableArrayList("PLUGIN_CONFIG", configBundles); // Broadcast the intent Intent intent = new Intent(); intent.setAction("com.symbol.datawedge.api.ACTION"); intent.putExtra("com.symbol.datawedge.api.SET_CONFIG", setConfigBundle); sendBroadcast(intent); }

シリアル入力構成の設定

// // Port 1 Configuration [Start] // Bundle bPort1 = new Bundle(); bPort1.putString("serial_port_id", "0"); //Supported Values: 0,1 bPort1.putString("serial_input_enabled", "true"); // Supported Values: true, false bPort1.putString("serial_baudrate", "1200"); // Supported Values (some): 300, 1200, 2400, 4800, 19200, and more bPort1.putString("serial_databits", "8"); //Supported Values: 8, 7 bPort1.putString("serial_parity", "ODD"); //Supported Values: NONE, ODD, EVEN, MARK, SPACE bPort1.putString("serial_stopbits", "1"); //Supported Values: 1, 2 bPort1.putString("serial_flow", "FLOW_RTS_CTS"); //Supported Values: FLOW_NONE, FLOW_RTS_CTS, FLOW_DSR_DTR, FLOW_XON_XOFF // // Port 1 Configuration [End] // // Port 2 Configuration [Start] // Bundle bPort2 = new Bundle(); bPort2.putString("serial_port_id", "1"); bPort2.putString("serial_input_enabled", "true"); bPort2.putString("serial_baudrate", "300"); bPort2.putString("serial_databits", "7"); //bPort2.putString("abc", "123"); bPort2.putString("serial_stopbits", "2"); bPort2.putString("serial_flow", "FLOW_DSR_DTR"); bPort2.putString("serial_parity", "EVEN"); // // Port 2 Configuration [End] // Bundle bConfig = new Bundle(); bConfig.putString("RESET_CONFIG", "false"); bConfig.putString("PLUGIN_NAME", "SERIAL"); bConfig.putParcelableArray("DEVICE_LIST", new Bundle[]{ bPort1, bPort2 }); Bundle bMain = new Bundle(); bMain.putString("PROFILE_NAME", "Profile0 (default)"); bMain.putString("CONFIG_MODE", "UPDATE"); bMain.putBundle("PLUGIN_CONFIG", bConfig); Intent i = new Intent(); i.setAction("com.symbol.datawedge.api.ACTION"); i.putExtra("com.symbol.datawedge.api.SET_CONFIG", bMain); i.putExtra("SEND_RESULT","LAST_RESULT"); // i.putExtra("SEND_RESULT", "true"); // For versions prior to DataWedge 7.1 i.putExtra("com.symbol.datawedge.api.RESULT_CATEGORY", DEFAULT_CATEGORY); i.putExtra("COMMAND_IDENTIFIER", "DW_SERIAL_COMMAND"); this.sendBroadcast(i);

DCP 入力構成の設定

//SetConfig [Start] Bundle bMain = new Bundle(); Bundle bConfigDCP = new Bundle(); Bundle bParamsDCP = new Bundle(); bParamsDCP.putString("dcp_input_enabled", "true"); bParamsDCP.putString("dcp_dock_button_on", "LEFT"); //Supported values: BOTH - Left or Right, LEFT - Left only, RIGHT - Right only bParamsDCP.putString("dcp_start_in", "FULLSCREEN"); //Supported Values: FULLSCREEN, BUTTON, BUTTON_ONLY bParamsDCP.putString("dcp_highest_pos", "30"); //Supported Values: 0 - 100, Highest pos can not be greater than lowest pos bParamsDCP.putString("dcp_lowest_pos", "40"); //Supported Values: 0 - 100, Highest pos can not be greater than lowest pos bParamsDCP.putString("dcp_drag_detect_time", "501"); //Supported Values: 0 - 1000 bConfigDCP.putString("RESET_CONFIG", "false"); bConfigDCP.putBundle("PARAM_LIST", bParamsDCP); bMain.putBundle("DCP", bConfigDCP); bMain.putString("PROFILE_NAME", "Profile007"); bMain.putString("PROFILE_ENABLED", "true"); bMain.putString("CONFIG_MODE", "CREATE_IF_NOT_EXIST"); Intent iSetConfig = new Intent(); iSetConfig.setAction("com.symbol.datawedge.api.ACTION"); iSetConfig.putExtra("com.symbol.datawedge.api.SET_CONFIG", bMain); iSetConfig.putExtra("SEND_RESULT", "LAST_RESULT"); iSetConfig.putExtra("COMMAND_IDENTIFIER", "INTENT_API"); //SetConfig [End] this.sendBroadcast(iSetConfig);

MSR 入力構成の設定

// SetConfig [Start] Bundle bMain = new Bundle(); Bundle bConfigMSR = new Bundle(); Bundle bParamsMSR = new Bundle(); bParamsMSR.putString("msr_input_enabled", "true"); bConfigMSR.putString("PLUGIN_NAME", "MSR"); bConfigMSR.putString("RESET_CONFIG", "true"); bConfigMSR.putBundle("PARAM_LIST", bParamsMSR); bMain.putBundle("PLUGIN_CONFIG", bConfigMSR); bMain.putString("PROFILE_NAME", "Profile007"); bMain.putString("PROFILE_ENABLED", "true"); bMain.putString("CONFIG_MODE", "CREATE_IF_NOT_EXIST"); Intent iSetConfig = new Intent(); iSetConfig.setAction("com.symbol.datawedge.api.ACTION"); iSetConfig.putExtra("com.symbol.datawedge.api.SET_CONFIG", bMain); iSetConfig.putExtra("SEND_RESULT", "LAST_RESULT"); iSetConfig.putExtra("COMMAND_IDENTIFIER", "INTENT_API"); // SetConfig [End] this.sendBroadcast(iSetConfig);

音声入力構成の設定

public void CreateProfile (View view) { ArrayList<Bundle> plugins = new ArrayList(); // Configure created profile to apply to this app Bundle profileConfig = new Bundle(); profileConfig.putString("PROFILE_NAME", EXTRA_PROFILENAME); profileConfig.putString("PROFILE_ENABLED", "true"); profileConfig.putString("CONFIG_MODE", "CREATE_IF_NOT_EXIST"); // Create profile if it does not exist // Associate profile with this app Bundle appConfig = new Bundle(); appConfig.putString("PACKAGE_NAME", getPackageName()); appConfig.putStringArray("ACTIVITY_LIST", new String[]{"*"}); profileConfig.putParcelableArray("APP_LIST", new Bundle[]{appConfig}); // Configure intent output for captured data to be sent to this app Bundle intentConfig = new Bundle(); intentConfig.putString("PLUGIN_NAME", "INTENT"); intentConfig.putString("RESET_CONFIG", "true"); Bundle intentProps = new Bundle(); intentProps.putString("intent_output_enabled", "true"); intentProps.putString("intent_action", "com.zebra.datacapture1.ACTION"); intentProps.putString("intent_delivery", "2"); intentConfig.putBundle("PARAM_LIST", intentProps); plugins.add(intentConfig); // Add Voice Input Configuration Bundle voiceConfig = new Bundle(); voiceConfig.putString("PLUGIN_NAME", "VOICE"); voiceConfig.putString("RESET_CONFIG", "false"); Bundle bParams = new Bundle(); bParams.putString("voice_input_enabled", "true"); bParams.putString("voice_end_detection_timeout", "3"); bParams.putString("voice_data_type", "1"); bParams.putString("voice_data_capture_waiting_tone", "true"); bParams.putString("voice_validation_window", "true"); bParams.putString("voice_offline_speech", "false"); bParams.putString("voice_data_capture_start_option", "0"); bParams.putString("voice_command_tab_enabled", "true"); bParams.putString("voice_command_tab_phrase", "tab"); bParams.putString("voice_command_enter", "true"); bParams.putString("voice_command_enter_phrase", "enter"); bParams.putString("voice_command_move_next_enabled", "true"); bParams.putString("voice_command_move_next_phrase", "next"); bParams.putString("voice_command_move_previous_enabled", "true"); bParams.putString("voice_command_move_previous_phrase", "previous"); bParams.putString("voice_command_escape_enabled", "true"); bParams.putString("voice_command_escape_phrase", "escape"); bParams.putString("voice_command_clear_enabled", "true"); bParams.putString("voice_command_clear_phrase", "empty"); voiceConfig.putBundle("PARAM_LIST", bParams); // Add Voice Input plugin Configuration to the plugins list plugins.add(voiceConfig); // Add plugins list to the bundle profileConfig.putParcelableArrayList("PLUGIN_CONFIG", plugins); // Broadcast the intent. Intent i = new Intent(); i.setAction("com.symbol.datawedge.api.ACTION"); i.putExtra("com.symbol.datawedge.api.SET_CONFIG", profileConfig); i.putExtra("SEND_RESULT","LAST_RESULT"); i.putExtra("COMMAND_IDENTIFIER", "SET_CONFIG"); this.sendBroadcast(i); }

BDF 処理の設定

処理プラグインでは、取得したデータを、関連付けられたアプリに出力プラグインを介して送信する前に、指定された方法でそのデータを操作します。「BDF について」および「ADF について」を参照してください。

// Main bundle properties Bundle bMain = new Bundle(); bMain.putString("PROFILE_NAME","Profile12"); bMain.putString("PROFILE_ENABLED","true"); bMain.putString("CONFIG_MODE","CREATE_IF_NOT_EXIST"); // plugin_config bundle properties Bundle bConfig = new Bundle(); bConfig.putString("PLUGIN_NAME","BDF"); bConfig.putString("RESET_CONFIG","true"); bConfig.putString("OUTPUT_PLUGIN_NAME","KEYSTROKE"); // param_list bundle properties Bundle bParams = new Bundle(); bParams.putString("bdf_enabled","true"); bParams.putString("bdf_prefix","AAA"); bParams.putString("bdf_send_enter","true"); bConfig.putBundle("PARAM_LIST", bParams); bMain.putBundle("PLUGIN_CONFIG", bConfig); Intent i = new Intent(); i.setAction("com.symbol.datawedge.api.ACTION"); i.putExtra("com.symbol.datawedge.api.SET_CONFIG", bMain); this.sendBroadcast(i);

ADF 処理の設定

//MAIN BUNDLE PROPERTIES Bundle bMain = new Bundle(); bMain.putString("PROFILE_NAME","ProfileTest"); bMain.putString("PROFILE_ENABLED","true"); bMain.putString("CONFIG_MODE","CREATE_IF_NOT_EXIST"); //PLUGIN_CONFIG BUNDLE PROPERTIES Bundle bConfig = new Bundle(); bConfig.putString("PLUGIN_NAME","ADF"); bConfig.putString("RESET_CONFIG","true"); bConfig.putString("OUTPUT_PLUGIN_NAME","KEYSTROKE"); bConfig.putString("adf_enabled","true"); //PARAM_LIST BUNDLE PROPERTIES //RULE BUNDLE PROPERTIES Bundle bParamsRule1 = new Bundle(); bParamsRule1.putString("name","Rule1"); bParamsRule1.putString("enabled","true"); bParamsRule1.putString("alldevices","true"); bParamsRule1.putString("string","abc"); bParamsRule1.putString("string_pos","2"); bParamsRule1.putString("string_len","4"); //ACTION BUNDLE PROPERTIES Bundle bParamsAction1 = new Bundle(); bParamsAction1.putString("type","SEND_NEXT"); bParamsAction1.putString("action_param_1","5"); //ACTION BUNDLE PROPERTIES Bundle bParamsAction2 = new Bundle(); bParamsAction2.putString("type","SKIP_BACK"); //DEVICE BUNDLE PROPERTIES Bundle bParamsDevice1 = new Bundle(); bParamsDevice1.putString("device_id","BARCODE"); bParamsDevice1.putString("enabled","true"); bParamsDevice1.putString("alldecoders","false"); bParamsDevice1.putString("all_label_ids","false"); //DEVICE BUNDLE PROPERTIES Bundle bParamsDevice2 = new Bundle(); bParamsDevice2.putString("device_id","MSR"); bParamsDevice2.putString("enabled","true"); //DEVICE BUNDLE PROPERTIES Bundle bParamsDevice3 = new Bundle(); bParamsDevice3.putString("device_id","SIMULSCAN"); bParamsDevice3.putString("enabled","true"); //DECODER BUNDLE PROPERTIES Bundle bParamsDecoders1 = new Bundle(); bParamsDecoders1.putString("device_id","BARCODE"); bParamsDecoders1.putString("decoder","Australian Postal"); bParamsDecoders1.putString("enabled","true"); //DECODER BUNDLE PROPERTIES Bundle bParamsDecoders2 = new Bundle(); bParamsDecoders2.putString("device_id","BARCODE"); bParamsDecoders2.putString("decoder","Bookland"); bParamsDecoders2.putString("enabled","false"); //DECODER BUNDLE PROPERTIES Bundle bParamsDecoders3 = new Bundle(); bParamsDecoders3.putString("device_id","BARCODE"); bParamsDecoders3.putString("decoder","Codebar"); bParamsDecoders3.putString("enabled","true"); //LABEL ID BUNDLE PROPERTIES Bundle bParamsLabelID1 = new Bundle(); bParamsLabelID1.putString("device_id","BARCODE"); bParamsLabelID1.putString("label_id","UDI_GS1"); bParamsLabelID1.putString("enabled","true"); //LABEL ID BUNDLE PROPERTIES Bundle bParamsLabelID2 = new Bundle(); bParamsLabelID2.putString("device_id","BARCODE"); bParamsLabelID2.putString("label_id","UDI_HIBCC"); bParamsLabelID2.putString("enabled","true"); ArrayList<Bundle> bParamsActionList = new ArrayList<Bundle>(); bParamsActionList.add(bParamsAction1); bParamsActionList.add(bParamsAction2); ArrayList<Bundle> bParamsDeviceList = new ArrayList<Bundle>(); bParamsDeviceList.add(bParamsDevice1); bParamsDeviceList.add(bParamsDevice2); bParamsDeviceList.add(bParamsDevice3); ArrayList<Bundle> bParamsDecoderList = new ArrayList<Bundle>(); bParamsDecoderList.add(bParamsDecoders1); bParamsDecoderList.add(bParamsDecoders2); bParamsDecoderList.add(bParamsDecoders3); ArrayList<Bundle> bParamsLabelIDList = new ArrayList<Bundle>(); bParamsLabelIDList.add(bParamsLabelID1); bParamsLabelIDList.add(bParamsLabelID2); bParamsRule1.putParcelableArrayList("ACTIONS",bParamsActionList); bParamsRule1.putParcelableArrayList("DEVICES",bParamsDeviceList); bParamsRule1.putParcelableArrayList("DECODERS",bParamsDecoderList); bParamsRule1.putParcelableArrayList("LABEL_IDS",bParamsLabelIDList); Bundle bParamsRule2 = new Bundle(); bParamsRule2.putString("name","Rule30"); bParamsRule2.putString("enabled","true"); bParamsRule2.putString("alldevices","true"); bParamsRule2.putString("string","cde"); bParamsRule2.putString("string_pos","3"); bParamsRule2.putString("string_len","5"); ArrayList<Bundle> bParamsList = new ArrayList<Bundle>(); bParamsList.add(bParamsRule1); bParamsList.add(bParamsRule2); bConfig.putParcelableArrayList("PARAM_LIST", bParamsList); bMain.putBundle("PLUGIN_CONFIG", bConfig); Intent i = new Intent(); i.setAction("com.symbol.datawedge.api.ACTION"); i.putExtra("com.symbol.datawedge.api.SET_CONFIG", bMain); i.putExtra("SEND_RESULT","LAST_RESULT"); // i.putExtra("SEND_RESULT", "true"); // For versions prior to DataWedge 7.1 i.putExtra("COMMAND_IDENTIFIER", "ADF_API"); this.sendBroadcast(i); // GET RESULT CODE public void onReceive(Context context, Intent intent){ String command = intent.getStringExtra("COMMAND"); String commandidentifier = intent.getStringExtra("COMMAND_IDENTIFIER"); String result = intent.getStringExtra("RESULT"); Bundle bundle = new Bundle(); String resultInfo = ""; if(intent.hasExtra("RESULT_INFO")){ bundle = intent.getBundleExtra("RESULT_INFO"); Set<String> keys = bundle.keySet(); for (String key: keys) { resultInfo += key + ": "+bundle.getString(key) + "\n"; } } String text = "Command: "+command+"\n" + "Result: " +result+"\n" + "Result Info: " +resultInfo + "\n" + "CID:"+commandidentifier; Toast.makeText(context, text, Toast.LENGTH_LONG).show(); };

TOKEN 処理の設定

// SetConfig [Start] Bundle bMain = new Bundle(); Bundle bConfigToken = new Bundle(); Bundle bParamsToken = new Bundle(); bParamsToken.putString("send_tokens_option", "BARCODES_TOKENS"); // Supported Values: DISABLED, TOKENS, BARCODES_TOKENS bParamsToken.putString("token_separator", "LF"); // Supported Values: None, TAB, CR, LF, CUSTOM bParamsToken.putString("token_custom_separator", "@"); // If "token_separator" is set to "CUSTOM", then define the token_custom_separator. Supported Values: Any character(s) with a length of 1 to 10 characters bParamsToken.putString("multibarcode_separator", "LF"); // Supported Values: NONE, TAB, CR, LF, CUSTOM bParamsToken.putString("barcode_custom_separator", "@"); // If "multibarcode_separator" is set to "CUSTOM", then define the "barcode_custom_separator". Supported Values: Any character(s) with a length of 1 to 10 characters bParamsToken.putString("with_parenthesis_enabled", "false"); // Supported Values: false (default) or true Bundle tokenOrder_manufacturing_date_original = new Bundle(); tokenOrder_manufacturing_date_original.putString("name", "manufacturing_date_original"); tokenOrder_manufacturing_date_original.putString("enabled", "true"); Bundle tokenOrder_expiration_date_original = new Bundle(); tokenOrder_expiration_date_original.putString("name", "expiration_date_original"); tokenOrder_expiration_date_original.putString("enabled", "true"); Bundle tokenOrder_di = new Bundle(); tokenOrder_di.putString("name", "di"); tokenOrder_di.putString("enabled", "true"); Bundle tokenOrder_lot_number = new Bundle(); tokenOrder_lot_number.putString("name", "lot_number"); tokenOrder_lot_number.putString("enabled", "true"); Bundle tokenOrder_serial_number = new Bundle(); tokenOrder_serial_number.putString("name", "serial_number"); tokenOrder_serial_number.putString("enabled", "true"); Bundle tokenOrder_mpho_lot_number = new Bundle(); tokenOrder_mpho_lot_number.putString("name", "mpho_lot_number"); tokenOrder_mpho_lot_number.putString("enabled", "true"); Bundle tokenOrder_donation_id = new Bundle(); tokenOrder_donation_id.putString("name", "donation_id"); tokenOrder_donation_id.putString("enabled", "true"); Bundle tokenOrder_labeler_identification_code = new Bundle(); tokenOrder_labeler_identification_code.putString("name", "labeler_identification_code"); tokenOrder_labeler_identification_code.putString("enabled", "true"); Bundle tokenOrder_product_or_catalog_number = new Bundle(); tokenOrder_product_or_catalog_number.putString("name", "product_or_catalog_number"); tokenOrder_product_or_catalog_number.putString("enabled", "true"); Bundle tokenOrder_unit_of_measure_id = new Bundle(); tokenOrder_unit_of_measure_id.putString("name", "unit_of_measure_id"); tokenOrder_unit_of_measure_id.putString("enabled", "false"); Bundle tokenOrder_quantity = new Bundle(); tokenOrder_quantity.putString("name", "quantity"); tokenOrder_quantity.putString("enabled", "false"); // Specify the token order ArrayList<Bundle> tokenOrderList = new ArrayList<>(); tokenOrderList.add(tokenOrder_manufacturing_date_original); tokenOrderList.add(tokenOrder_expiration_date_original); tokenOrderList.add(tokenOrder_lot_number); tokenOrderList.add(tokenOrder_di); tokenOrderList.add(tokenOrder_serial_number); tokenOrderList.add(tokenOrder_mpho_lot_number); tokenOrderList.add(tokenOrder_donation_id); tokenOrderList.add(tokenOrder_labeler_identification_code); tokenOrderList.add(tokenOrder_product_or_catalog_number); tokenOrderList.add(tokenOrder_unit_of_measure_id); tokenOrderList.add(tokenOrder_quantity); bParamsToken.putParcelableArrayList("token_order", tokenOrderList); bConfigToken.putString("PLUGIN_NAME", "TOKEN"); bConfigToken.putString("OUTPUT_PLUGIN_NAME", "KEYSTROKE"); // Tokens are supported only in KEYSTROKE and IP plugins only bConfigToken.putString("RESET_CONFIG", "true"); bConfigToken.putBundle("PARAM_LIST", bParamsToken); bMain.putBundle("PLUGIN_CONFIG", bConfigToken); bMain.putString("PROFILE_NAME", "Profile007"); bMain.putString("PROFILE_ENABLED", "true"); bMain.putString("CONFIG_MODE", "CREATE_IF_NOT_EXIST"); Intent iSetConfig = new Intent(); iSetConfig.setAction("com.symbol.datawedge.api.ACTION"); iSetConfig.putExtra("com.symbol.datawedge.api.SET_CONFIG", bMain); iSetConfig.putExtra("SEND_RESULT", "LAST_RESULT"); iSetConfig.putExtra("COMMAND_IDENTIFIER", "INTENT_API"); // SetConfig [End] this.sendBroadcast(iSetConfig);

ワークフロー セパレータの設定

// SetConfig [Start] Bundle bMain = new Bundle(); Bundle bConfigToken = new Bundle(); Bundle bParamsToken = new Bundle(); bParamsToken.putString("workflow_separator","LF"); // Supported Values: NONE, TAB, LF, CR, CUSTOM bParamsToken.putString("workflow_custom_separator", "@"); // If "workflow_separator" is set to "CUSTOM", then define the "workflow_custom_separator". Supported Values: Any character(s) with a length of 1 to 10 characters bConfigToken.putString("PLUGIN_NAME", "TOKEN"); bConfigToken.putString("OUTPUT_PLUGIN_NAME", "KEYSTROKE"); // Tokens are supported only in KEYSTROKE and IP plugins only bConfigToken.putString("RESET_CONFIG", "true"); bConfigToken.putBundle("PARAM_LIST", bParamsToken); bMain.putBundle("PLUGIN_CONFIG", bConfigToken); bMain.putString("PROFILE_NAME", "Profile007"); bMain.putString("PROFILE_ENABLED", "true"); bMain.putString("CONFIG_MODE", "CREATE_IF_NOT_EXIST"); Intent iSetConfig = new Intent(); iSetConfig.setAction("com.symbol.datawedge.api.ACTION"); iSetConfig.putExtra("com.symbol.datawedge.api.SET_CONFIG", bMain); iSetConfig.putExtra("SEND_RESULT", "LAST_RESULT"); iSetConfig.putExtra("COMMAND_IDENTIFIER", "INTENT_API"); // SetConfig [End] this.sendBroadcast(iSetConfig);

GS1 TOKEN 処理の設定

// SetConfig [Start] Bundle bMain = new Bundle(); Bundle bConfigToken = new Bundle(); Bundle bParamsToken = new Bundle(); bParamsToken.putString("gs1_send_token_option","BARCODES_TOKENS"); bParamsToken.putString("gs1_token_separator","LF"); // Supported Values: NONE, TAB, LF, CR, CUSTOM bParamsToken.putString("gs1_custom_separator", "@"); // If "gs1_token_separator" is set to "CUSTOM", then define "gs1_custom_separator". Supported Values: Any character(s) with a length of 1 to 10 characters bParamsToken.putString("multibarcode_separator","LF"); // Supported Values: NONE, TAB, LF, CR, CUSTOM bParamsToken.putString("barcode_custom_separator", "@"); // If "multibarcode_separator" is set to "CUSTOM", define "barcode_custom_separator". Supported Values: Any characters with a length of 1 to 10 characters bParamsToken.putString("with_parenthesis_enabled", "false"); // Supported Values: false (default) or true Bundle gs1TokenOrderDomain = new Bundle(); gs1TokenOrderDomain.putString("name","digital_link_domain"); gs1TokenOrderDomain.putString("enabled","true"); Bundle gs1TokenOrderSSCC = new Bundle(); gs1TokenOrderSSCC.putString("name","serial_shipping_container_code"); gs1TokenOrderSSCC.putString("enabled","true"); Bundle gs1TokenOrderDIGTIN = new Bundle(); gs1TokenOrderDIGTIN.putString("name","di"); gs1TokenOrderDIGTIN.putString("enabled","true"); Bundle gs1TokenOrderGTIN = new Bundle(); gs1TokenOrderGTIN.putString("name","global_trade_item_number_of_contained_trade_items"); gs1TokenOrderGTIN.putString("enabled","false"); Bundle gs1TokenOrderMDO = new Bundle(); gs1TokenOrderMDO.putString("name","manufacturing_date_original"); gs1TokenOrderMDO.putString("enabled","true"); Bundle gs1TokenOrderBDD = new Bundle(); gs1TokenOrderBDD.putString("name","best_before_date"); gs1TokenOrderBDD.putString("enabled","true"); Bundle gs1TokenOrderEDO = new Bundle(); gs1TokenOrderEDO.putString("name","expiration_date_original"); gs1TokenOrderEDO.putString("enabled","true"); Bundle gs1TokenOrderLOT = new Bundle(); gs1TokenOrderLOT.putString("name","lot_number"); gs1TokenOrderLOT.putString("enabled","true"); Bundle gs1TokenOrderSN = new Bundle(); gs1TokenOrderSN.putString("name","serial_number"); gs1TokenOrderSN.putString("enabled","false"); Bundle gs1TokenOrderVCount = new Bundle(); gs1TokenOrderVCount.putString("name","variable_count_of_items"); gs1TokenOrderVCount.putString("enabled","true"); Bundle gs1TokenOrderCount = new Bundle(); gs1TokenOrderCount.putString("name","count_of_trade_items"); gs1TokenOrderCount.putString("enabled","false"); Bundle gs1TokenOrderCII = new Bundle(); gs1TokenOrderCII.putString("name","company_internal_information"); gs1TokenOrderCII.putString("enabled","false"); Bundle gs1TokenOrderCPON = new Bundle(); gs1TokenOrderCPON.putString("name","customers_purchase_order_number"); gs1TokenOrderCPON.putString("enabled","true"); Bundle gs1TokenOrderSTP = new Bundle(); gs1TokenOrderSTP.putString("name","ship_to_postal_code_within_a_single_postal_authority"); gs1TokenOrderSTP.putString("enabled","false"); // Specify the gs1 token order ArrayList gs1TokenOrderList = new ArrayList(); gs1TokenOrderList.add(gs1TokenOrderDomain); gs1TokenOrderList.add(gs1TokenOrderSSCC); gs1TokenOrderList.add(gs1TokenOrderDIGTIN); gs1TokenOrderList.add(gs1TokenOrderGTIN); gs1TokenOrderList.add(gs1TokenOrderMDO); gs1TokenOrderList.add(gs1TokenOrderBDD); gs1TokenOrderList.add(gs1TokenOrderEDO); gs1TokenOrderList.add(gs1TokenOrderLOT); gs1TokenOrderList.add(gs1TokenOrderSN); gs1TokenOrderList.add(gs1TokenOrderVCount); gs1TokenOrderList.add(gs1TokenOrderCount); gs1TokenOrderList.add(gs1TokenOrderCII); gs1TokenOrderList.add(gs1TokenOrderCPON); gs1TokenOrderList.add(gs1TokenOrderSTP); bParamsToken.putParcelableArrayList("gs1_token_order",gs1TokenOrderList); bConfigToken.putString("PLUGIN_NAME","TOKEN"); bConfigToken.putString("OUTPUT_PLUGIN_NAME","KEYSTROKE"); bConfigToken.putString("RESET_CONFIG","true"); bConfigToken.putBundle("PARAM_LIST",bParamsToken); bMain.putBundle("PLUGIN_CONFIG",bConfigToken); bMain.putString("PROFILE_NAME","Profile007"); bMain.putString("PROFILE_ENABLED","true"); bMain.putString("CONFIG_MODE","CREATE_IF_NOT_EXIST"); Intent iSetConfig = new Intent(); iSetConfig.setAction("com.symbol.datawedge.api.ACTION"); iSetConfig.putExtra("com.symbol.datawedge.api.SET_CONFIG",bMain); iSetConfig.putExtra("SEND_RESULT","true"); iSetConfig.putExtra("COMMAND_IDENTIFIER","INTENT_API"); // SetConfig [End] this.sendBroadcast(iSetConfig);

キーストローク出力の設定

@Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_main); registerReceivers(); } @Override protected void onResume() { super.onResume(); setKeystrokeOutputPluginConfiguration(); } private void registerReceivers() { IntentFilter filter = new IntentFilter(); filter.addAction("com.symbol.datawedge.api.RESULT_ACTION"); filter.addCategory("android.intent.category.DEFAULT"); registerReceiver(datawedgeKeystrokeNIntentStatusBR, filter); } private BroadcastReceiver datawedgeKeystrokeNIntentStatusBR = new BroadcastReceiver() { @Override public void onReceive(Context context, Intent intent) { String command = intent.getStringExtra("COMMAND").equals("") ? "EMPTY" : intent.getStringExtra("COMMAND"); String commandIdentifier = intent.getStringExtra("COMMAND_IDENTIFIER").equals("") ? "EMPTY" : intent.getStringExtra("COMMAND_IDENTIFIER"); String result = intent.getStringExtra("RESULT").equals("") ? "EMPTY" : intent.getStringExtra("RESULT"); Bundle bundle; String resultInfo = ""; if (intent.hasExtra("RESULT_INFO")) { bundle = intent.getBundleExtra("RESULT_INFO"); Set<String> keys = bundle.keySet(); for (String key : keys) { resultInfo += key + ": " + bundle.getString(key) + "\n"; } } String text="\n"+"Command: " + command + "\n" + "Result: " + result + "\n" + "Result Info: " + resultInfo + "\n" + "CID: " + commandIdentifier; Log.d("TAG”,text); } }; public void setKeystrokeOutputPluginConfiguration() { Bundle configBundle = new Bundle(); configBundle.putString("PROFILE_NAME","UserProfile"); configBundle.putString("PROFILE_ENABLED","true"); configBundle.putString("CONFIG_MODE","CREATE_IF_NOT_EXIST"); Bundle bConfig = new Bundle(); bConfig.putString("PLUGIN_NAME", "KEYSTROKE"); Bundle bParams = new Bundle(); bParams.putString("keystroke_output_enabled","true"); bParams.putString("keystroke_action_char","9"); // 0, 9 , 10, 13 bParams.putString("keystroke_delay_extended_ascii","500"); bParams.putString("keystroke_delay_control_chars","800"); bConfig.putBundle("PARAM_LIST", bParams); configBundle.putBundle("PLUGIN_CONFIG", bConfig); Intent i = new Intent(); i.setAction("com.symbol.datawedge.api.ACTION"); i.putExtra("com.symbol.datawedge.api.SET_CONFIG", configBundle); i.putExtra("SEND_RESULT","LAST_RESULT"); // i.putExtra("SEND_RESULT", "true"); // For versions prior to DataWedge 7.1 i.putExtra("COMMAND_IDENTIFIER", "KEYSTROKE_API"); this.sendBroadcast(i); } @Override protected void onDestroy() { super.onDestroy(); unregisterReceiver(datawedgeKeystrokeNIntentStatusBR); }

IP 出力の設定

// SetConfig [Start] Bundle bMain = new Bundle(); Bundle bConfigIPOutput = new Bundle(); Bundle bParamsIPOutput = new Bundle(); bParamsIPOutput.putString("ip_output_enabled", "true"); bParamsIPOutput.putString("ip_output_ip_wedge_enabled", "false"); bParamsIPOutput.putString("ip_output_protocol", "UDP"); //Supported Values: TCP: UDP bParamsIPOutput.putString("ip_output_address", "192.168.0.1"); //Supported Values : IP Address format bParamsIPOutput.putString("ip_output_port", "55555"); //Supported Values : 1 - 65535 bConfigIPOutput.putString("PLUGIN_NAME", "IP"); bConfigIPOutput.putString("RESET_CONFIG", "true"); bConfigIPOutput.putBundle("PARAM_LIST", bParamsIPOutput); ArrayList<Bundle> bundlePluginConfig = new ArrayList<>(); bundlePluginConfig.add(bConfigIPOutput); bMain.putParcelableArrayList("PLUGIN_CONFIG", bundlePluginConfig); bMain.putString("PROFILE_NAME", "Profile007"); bMain.putString("PROFILE_ENABLED", "true"); bMain.putString("CONFIG_MODE", "CREATE_IF_NOT_EXIST"); Intent iSetConfig = new Intent(); iSetConfig.setAction("com.symbol.datawedge.api.ACTION"); iSetConfig.putExtra("com.symbol.datawedge.api.SET_CONFIG", bMain); iSetConfig.putExtra("SEND_RESULT", "LAST_RESULT"); iSetConfig.putExtra("COMMAND_IDENTIFIER", "INTENT_API"); // SetConfig [End] this.sendBroadcast(iSetConfig);

INTENT 出力の設定

@Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_main); registerReceivers(); } @Override protected void onResume() { super.onResume(); setIntentOutputPluginConfiguration(); } private void registerReceivers() { IntentFilter filter = new IntentFilter(); filter.addAction("com.symbol.datawedge.api.RESULT_ACTION"); filter.addCategory("android.intent.category.DEFAULT"); registerReceiver(datawedgeKeystrokeNIntentStatusBR, filter); } private BroadcastReceiver datawedgeKeystrokeNIntentStatusBR = new BroadcastReceiver() { @Override public void onReceive(Context context, Intent intent) { String command = intent.getStringExtra("COMMAND").equals("") ? "EMPTY" : intent.getStringExtra("COMMAND"); String commandIdentifier = intent.getStringExtra("COMMAND_IDENTIFIER").equals("") ? "EMPTY" : intent.getStringExtra("COMMAND_IDENTIFIER"); String result = intent.getStringExtra("RESULT").equals("") ? "EMPTY" : intent.getStringExtra("RESULT"); Bundle bundle; String resultInfo = ""; if (intent.hasExtra("RESULT_INFO")) { bundle = intent.getBundleExtra("RESULT_INFO"); Set<String> keys = bundle.keySet(); for (String key : keys) { resultInfo += key + ": " + bundle.getString(key) + "\n"; } } String text ="\n" + "Command: " + command + "\n" + "Result: " + result + "\n" + "Result Info: " + resultInfo + "\n" + "CID: " + commandIdentifier; Log.d("TAG”,text); } }; public void setIntentOutputPluginConfiguration() { Bundle bMain = new Bundle(); Bundle bConfig = new Bundle(); Bundle bParams = new Bundle(); bParams.putString("intent_output_enabled","true"); bParams.putString("intent_action","com.symbol.dwudiusertokens.udi"); bParams.putString("intent_category","zebra.intent.dwudiusertokens.UDI"); bParams.putInt("intent_delivery",2); //Use "0" for Start Activity, "1" for Start Service, "2" for Broadcast bConfig.putString("PLUGIN_NAME", "INTENT"); bConfig.putString("RESET_CONFIG","false"); bConfig.putBundle("PARAM_LIST", bParams); bMain.putBundle("PLUGIN_CONFIG", bConfig); bMain.putString("PROFILE_NAME","UserProfile"); bMain.putString("PROFILE_ENABLED","true"); bMain.putString("CONFIG_MODE","CREATE_IF_NOT_EXIST"); Intent i = new Intent(); i.setAction("com.symbol.datawedge.api.ACTION"); i.putExtra("com.symbol.datawedge.api.SET_CONFIG",bMain); i.putExtra("SEND_RESULT","LAST_RESULT"); // i.putExtra("SEND_RESULT", "true"); // For versions prior to DataWedge 7.1 i.putExtra("COMMAND_IDENTIFIER", "INTENT_API"); this.sendBroadcast(i); } @Override protected void onDestroy() { super.onDestroy(); unregisterReceiver(datawedgeKeystrokeNIntentStatusBR); }

インテント出力のコンポーネント情報の設定

Bundle bMain = new Bundle(); ArrayList<Bundle> bundlePluginConfig = new ArrayList<>(); Bundle bConfigIntent = new Bundle(); Bundle bParamsIntent = new Bundle(); bParamsIntent.putString("intent_output_enabled", "true"); bParamsIntent.putString("intent_action", "com.zebra.myapplication"); bParamsIntent.putString("intent_category", "android.intent.category.DEFAULT"); ArrayList<Bundle> bundleComponentInfo = new ArrayList<Bundle>(); Bundle component0 = new Bundle(); component0.putString("PACKAGE_NAME","com.symbol.test"); component0.putString("SIGNATURE","E22084421EAE1A65EEBCB68D4341FE3C2BB6BEC9D"); bundleComponentInfo.add(component0); Bundle component1 = new Bundle(); component1.putString("PACKAGE_NAME","com.symbol.testpackage"); component1.putString("SIGNATURE","E22084421EAE1A65EEBCB68D4341FE3C2BB6BEC9"); bundleComponentInfo.add(component1); Bundle component2 = new Bundle(); component2.putString("PACKAGE_NAME","com.symbol.test"); component2.putString("SIGNATURE","E22084421EAE1A65EEBCB68D4341FE3C2BB6BEC9E"); bundleComponentInfo.add(component2); bParamsIntent.putParcelableArrayList("intent_component_info", bundleComponentInfo); bConfigIntent.putString("PLUGIN_NAME", "INTENT"); bConfigIntent.putString("RESET_CONFIG", "true"); bConfigIntent.putBundle("PARAM_LIST", bParamsIntent); bundlePluginConfig.add(bConfigIntent); bMain.putParcelableArrayList("PLUGIN_CONFIG", bundlePluginConfig); bMain.putString("PROFILE_NAME", "Profile009"); bMain.putString("PROFILE_ENABLED", "true"); bMain.putString("CONFIG_MODE", "CREATE_IF_NOT_EXIST"); Intent iSetConfig = new Intent(); iSetConfig.setAction("com.symbol.datawedge.api.ACTION"); iSetConfig.putExtra("com.symbol.datawedge.api.SET_CONFIG", bMain); iSetConfig.putExtra("SEND_RESULT", "LAST_RESULT"); iSetConfig.putExtra("COMMAND_IDENTIFIER", "SET_INTENT_OUTPUT"); this.sendBroadcast(iSetConfig);

アプリケーション署名の SHA1 の取得

インテント出力のコンポーネント情報からアプリケーション書名の SHA1 ハッシュ値を取得します。

import android.content.Context; import android.content.pm.PackageManager; import android.content.pm.Signature; import java.security.MessageDigest; import java.security.NoSuchAlgorithmException; public class SignatureCheck { void main(Context context) { try { Signature[] signatures = context.getPackageManager().getPackageInfo(context.getPackageName(), PackageManager.GET_SIGNATURES).signatures; for (Signature sig : signatures) { String sha1Signature = getSHA1(sig.toByteArray()); } } catch (PackageManager.NameNotFoundException e) { e.printStackTrace(); } } public static String getSHA1(byte[] sig) { MessageDigest digest = null; try { digest = MessageDigest.getInstance("SHA1"); } catch (NoSuchAlgorithmException e) { e.printStackTrace(); } digest.update(sig); byte[] hashtext = digest.digest(); return bytesToHex(hashtext); } public static String bytesToHex(byte[] bytes) { final char[] hexArray = {'0', '1', '2', '3', '4', '5', '6', '7', '8', '9', 'A', 'B', 'C', 'D', 'E', 'F'}; char[] hexChars = new char[bytes.length * 2]; int v; for (int j = 0; j < bytes.length; j++) { v = bytes[j] & 0xFF; hexChars[j * 2] = hexArray[v >>> 4]; hexChars[j * 2 + 1] = hexArray[v & 0x0F]; } return new String(hexChars); } }

結果コードの設定/取得

コマンドおよび構成インテント パラメータは、結果コードを送信するかどうかを決定します (デフォルトでは無効)。SEND_RESULT を使用する場合は、結果コードと元のインテントを照合するために、COMMAND_IDENTIFIER を使用します。こうしたパラメータの使用方法のサンプルを以下に示します。

注: 使用する API と一致するように、この汎用コードを変更する必要があります。

// send the intent Intent i = new Intent(); i.setAction(ACTION); i.putExtra("com.symbol.datawedge.api.CREATE_PROFILE", "Profile1"); // request and identify the result code i.putExtra("SEND_RESULT","LAST_RESULT");

// i.putExtra("SEND_RESULT", "true"); //DataWedge 7.1 より前のバージョンの場合 i.putExtra("COMMAND_IDENTIFIER","123456789"); this.sendBroadcast(i);

// register to receive the result public void onReceive(Context context, Intent intent){ String command = intent.getStringExtra("COMMAND"); String commandidentifier = intent.getStringExtra("COMMAND_IDENTIFIER"); String result = intent.getStringExtra("RESULT"); Bundle bundle = new Bundle(); String resultInfo = ""; if(intent.hasExtra("RESULT_INFO")){ bundle = intent.getBundleExtra("RESULT_INFO"); Set<String> keys = bundle.keySet(); for (String key: keys) { resultInfo += key + ": "+bundle.getString(key) + "\n"; } } String text = "Command: "+command+"\n" + "Result: " +result+"\n" + "Result Info: " +resultInfo + "\n" + "CID:"+commandidentifier; Toast.makeText(context, text, Toast.LENGTH_LONG).show(); };

スキャン用の内部イメージャの使用

Bundle bConfig = new Bundle(); bConfig.putString("PLUGIN_NAME","BARCODE"); Bundle bParams = new Bundle(); bParams.putString("scanner_input_enabled", "true"); // // auto or valid scanner identifier: // bParams.putString("scanner_selection_by_identifier", "INTERNAL_IMAGER"); bConfig.putBundle("PARAM_LIST",bParams);

文字間遅延の構成

private Integer ctrlCharacterDelayValue; private Integer genericCharacterDelayValue; private Boolean flagExtendedASCIIOnly; @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_main); registerReceivers(); ctrlCharacterDelayValue = null; genericCharacterDelayValue = null; flagExtendedASCIIOnly = null; } private void registerReceivers() { IntentFilter filter = new IntentFilter(); filter.addAction("com.symbol.datawedge.api.RESULT_ACTION"); filter.addCategory(Intent.CATEGORY_DEFAULT); registerReceiver(broadcastReceiver, filter); } @Override protected void onDestroy() { super.onDestroy(); unregisterReceiver(broadcastReceiver); } //Set configuration public void setKeystrokeOutputPluginConfiguration(View v) { Bundle configBundle = new Bundle(); configBundle.putString("PROFILE_NAME","Profile0 (default)"); configBundle.putString("PROFILE_ENABLED","true"); configBundle.putString("CONFIG_MODE","UPDATE"); Bundle bConfig = new Bundle(); bConfig.putString("PLUGIN_NAME", "KEYSTROKE"); Bundle bParams = new Bundle(); bParams.putString("keystroke_output_enabled","true"); if(ctrlCharacterDelayValue!=null){ bParams.putString("keystroke_delay_control_chars",ctrlCharacterDelayValue+""); } if(genericCharacterDelayValue !=null){ bParams.putString("keystroke_character_delay", genericCharacterDelayValue +""); } if(flagExtendedASCIIOnly!=null){ bParams.putString("keystroke_delay_multibyte_chars_only", flagExtendedASCIIOnly +""); } bConfig.putBundle("PARAM_LIST", bParams); configBundle.putBundle("PLUGIN_CONFIG", bConfig); Intent i = new Intent(); i.setAction("com.symbol.datawedge.api.ACTION"); i.putExtra("com.symbol.datawedge.api.SET_CONFIG", configBundle); i.putExtra("SEND_RESULT","LAST_RESULT"); // i.putExtra("SEND_RESULT", "true"); // For versions prior to DataWedge 7.1 i.putExtra("COMMAND_IDENTIFIER", "KEYSTROKE_API"); this.sendBroadcast(i); } //broadcast receiver private BroadcastReceiver broadcastReceiver = new BroadcastReceiver() { @Override public void onReceive(Context context, Intent intent) { String action = intent.getAction(); Log.d(TAG, "#DataWedge-APP# Action: " + action); //result of set config if(action.equals("com.symbol.datawedge.api.RESULT_ACTION")){ Bundle extrasBundle = intent.getExtras(); Set<String> keys = extrasBundle.keySet(); if(keys!=null&&keys.contains("RESULT")){ String result = (String)extrasBundle.get("RESULT"); Log.d(TAG,"Result:"+result); //get additional info Bundle resultInforBundle = (Bundle) extrasBundle.get("RESULT_INFO"); Object resultCode = resultInforBundle.get("RESULT_CODE"); if(resultCode instanceof String){ String code = (String)resultCode; Log.d(TAG,"Code:"+code); }else if(resultCode instanceof String[]){ String[] codesArray = (String[])resultCode; if(codesArray!=null){ for(String code : codesArray){ Log.d(TAG,"Code:"+code); } } } } }//end result of set config }//end onReceive };

単一インテントにおける複数モジュール (フル プロファイル) 用の構成の設定

DataWedge 7.1 でサポートが開始されました。以前の DataWedge バージョンでは、複数モジュール (プラグイン、APP_LIST、および Data Capture Plus) の構成の設定に、複数のインテント呼び出しが必要でした。

@Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_main); IntentFilter filter = new IntentFilter(); filter.addAction("com.symbol.datawedge.api.RESULT_ACTION"); filter.addCategory("android.intent.category.DEFAULT"); registerReceiver(broadcastReceiver, filter); setConfig(); } public void setConfig() { /** * Setting configuration for: * Intent Output Plugin * Barcode Input Plugin * MSR input Plugin * IP Output Plugin * Tokens for IP Output Plugin * Application Association * DCP (Data Capture Plus) */ // SetConfig [Start] Bundle bMain = new Bundle(); Bundle bConfigIntent = new Bundle(); Bundle bParamsIntent = new Bundle(); bParamsIntent.putString("intent_output_enabled", "true"); bParamsIntent.putString("intent_action", "com.symbol.dwudiusertokens.udi"); bParamsIntent.putString("intent_category", "zebra.intent.dwudiusertokens.UDI"); bParamsIntent.putInt("intent_delivery", 5); //Use "0" for Start Activity, "1" for Start Service, "2" for Broadcast, "3" for start foreground service bConfigIntent.putString("PLUGIN_NAME", "INTENT"); bConfigIntent.putString("RESET_CONFIG", "false"); bConfigIntent.putBundle("PARAM_LIST", bParamsIntent); Bundle bConfigSimulScan = new Bundle(); Bundle bParamsSimulScan = new Bundle(); bParamsSimulScan.putString("simulscan_input_enabled", "true"); bParamsSimulScan.putString("simulscan_input_source", "Imager"); //Supported values: Camera, Imager, Default bParamsSimulScan.putString("simulscan_region_separator", "TAB"); //Supported Values:None, TAB, CR, LF, NONE bParamsSimulScan.putString("simulscan_log_dir", "/storage/zebra/intent/"); bParamsSimulScan.putString("simulscan_enable_timestamp", "true"); Bundle templateParamsBundle = new Bundle(); templateParamsBundle.putString("dynamic_quantity", "99"); bParamsSimulScan.putString("simulscan_template", "UserDefinedQuantity.xml"); // Ex: UserDefinedQuantity.xml, Default - BankCheck.xml, Default - Barcode 1.xml, Default - Barcode 10.xml, Default - Barcode 2.xml, Default - Barcode 4.xml, Default - Barcode 5.xml, Default - BookNumber.xml, Default - DocCap + Optional Barcode.xml, Default - DocCap + Required Barcode.xml, Default - TravelDoc.xml, Default - Unstructured Multi-Line.xml, Default - Unstructured Single Line.xml bParamsSimulScan.putBundle("simulscan_template_params",templateParamsBundle); bConfigSimulScan.putString("PLUGIN_NAME", "SIMULSCAN"); bConfigSimulScan.putString("RESET_CONFIG", "false"); bConfigSimulScan.putBundle("PARAM_LIST", bParamsSimulScan); Bundle bConfigBarcode = new Bundle(); Bundle bParamsBarcode = new Bundle(); bParamsBarcode.putString("scanner_selection","auto"); bParamsBarcode.putString("scanner_input_enabled","true"); bConfigBarcode.putString("PLUGIN_NAME", "BARCODE"); bConfigBarcode.putString("RESET_CONFIG", "false"); bConfigBarcode.putBundle("PARAM_LIST", bParamsBarcode); Bundle bConfigMSR = new Bundle(); Bundle bParamsMSR = new Bundle(); bParamsMSR.putString("msr_input_enabled", "true"); bConfigMSR.putString("PLUGIN_NAME", "MSR"); bConfigMSR.putString("RESET_CONFIG", "false"); bConfigMSR.putBundle("PARAM_LIST", bParamsMSR); Bundle bConfigIPOutput = new Bundle(); Bundle bParamsIPOutput = new Bundle(); bParamsIPOutput.putString("ip_output_enabled", "true"); bParamsIPOutput.putString("ip_output_ip_wedge_enabled", "false"); bParamsIPOutput.putString("ip_output_protocol", "UDP"); //Supported Values: TCP: UDP bParamsIPOutput.putString("ip_output_address", "192.168.0.1"); //Supported Values : IP Address format bParamsIPOutput.putString("ip_output_port", "55555"); //Supported Values : 1 - 65535 bConfigIPOutput.putString("PLUGIN_NAME", "IP"); bConfigIPOutput.putString("RESET_CONFIG", "false"); bConfigIPOutput.putBundle("PARAM_LIST", bParamsIPOutput); Bundle bConfigToken = new Bundle(); Bundle bParamsToken = new Bundle(); bParamsToken.putString("send_tokens_option", "BARCODES_TOKENS"); // Supported Values: DISABLED, TOKENS, BARCODES_TOKENS bParamsToken.putString("token_separator", "LF"); //Supported Values:None, TAB, CR, LF, NONE bParamsToken.putString("multibarcode_separator", "LF"); //Supported Values:None, TAB, CR, LF, NONE Bundle tokenOrder_manufacturing_date_original = new Bundle(); tokenOrder_manufacturing_date_original.putString("name","manufacturing_date_original"); tokenOrder_manufacturing_date_original.putString("enabled","true"); Bundle tokenOrder_expiration_date_original = new Bundle(); tokenOrder_expiration_date_original.putString("name","expiration_date_original"); tokenOrder_expiration_date_original.putString("enabled","true"); Bundle tokenOrder_di = new Bundle(); tokenOrder_di.putString("name","di"); tokenOrder_di.putString("enabled","true"); Bundle tokenOrder_lot_number = new Bundle(); tokenOrder_lot_number.putString("name","lot_number"); tokenOrder_lot_number.putString("enabled","true"); Bundle tokenOrder_serial_number = new Bundle(); tokenOrder_serial_number.putString("name","serial_number"); tokenOrder_serial_number.putString("enabled","true"); Bundle tokenOrder_mpho_lot_number = new Bundle(); tokenOrder_mpho_lot_number.putString("name","mpho_lot_number"); tokenOrder_mpho_lot_number.putString("enabled","true"); Bundle tokenOrder_donation_id = new Bundle(); tokenOrder_donation_id.putString("name","donation_id"); tokenOrder_donation_id.putString("enabled","true"); Bundle tokenOrder_labeler_identification_code = new Bundle(); tokenOrder_labeler_identification_code.putString("name","labeler_identification_code"); tokenOrder_labeler_identification_code.putString("enabled","true"); Bundle tokenOrder_product_or_catalog_number = new Bundle(); tokenOrder_product_or_catalog_number.putString("name","product_or_catalog_number"); tokenOrder_product_or_catalog_number.putString("enabled","true"); Bundle tokenOrder_unit_of_measure_id = new Bundle(); tokenOrder_unit_of_measure_id.putString("name","unit_of_measure_id"); tokenOrder_unit_of_measure_id.putString("enabled","true"); Bundle tokenOrder_quantity = new Bundle(); tokenOrder_quantity.putString("name","quantity"); tokenOrder_quantity.putString("enabled","false"); ArrayList<Bundle> tokenOrderList = new ArrayList<>(); tokenOrderList.add(tokenOrder_manufacturing_date_original); tokenOrderList.add(tokenOrder_expiration_date_original); tokenOrderList.add(tokenOrder_lot_number); tokenOrderList.add(tokenOrder_di); tokenOrderList.add(tokenOrder_serial_number); tokenOrderList.add(tokenOrder_mpho_lot_number); tokenOrderList.add(tokenOrder_donation_id); tokenOrderList.add(tokenOrder_labeler_identification_code); tokenOrderList.add(tokenOrder_product_or_catalog_number); tokenOrderList.add(tokenOrder_unit_of_measure_id); tokenOrderList.add(tokenOrder_quantity); bParamsToken.putParcelableArrayList("token_order", tokenOrderList); bConfigToken.putString("PLUGIN_NAME", "TOKEN"); bConfigToken.putString("OUTPUT_PLUGIN_NAME","IP"); bConfigToken.putString("RESET_CONFIG", "true"); bConfigToken.putBundle("PARAM_LIST", bParamsToken); ArrayList<Bundle> bundlePluginConfig = new ArrayList<>(); bundlePluginConfig.add(bConfigIntent); bundlePluginConfig.add(bConfigBarcode); bundlePluginConfig.add(bConfigSimulScan); bundlePluginConfig.add(bConfigMSR); bundlePluginConfig.add(bConfigIPOutput); bundlePluginConfig.add(bConfigToken); bMain.putParcelableArrayList("PLUGIN_CONFIG", bundlePluginConfig); //AppList[Start] Bundle bundleApp1 = new Bundle(); bundleApp1.putString("PACKAGE_NAME", "com.symbol.emdk.simulscansample1"); bundleApp1.putStringArray("ACTIVITY_LIST", new String[]{ "com.symbol.emdk.simulscansample1.DeviceControl", "com.symbol.emdk.simulscansample1.MainActivity", "com.symbol.emdk.simulscansample1.ResultsActivity", "com.symbol.emdk.simulscansample1.ResultsActivity2", "com.symbol.emdk.simulscansample1.SettingsFragment1"}); Bundle bundleApp2 = new Bundle(); bundleApp2.putString("PACKAGE_NAME", "com.example.intents.datawedgeintent"); bundleApp2.putStringArray("ACTIVITY_LIST", new String[]{ "com.example.intents.datawedgeintent.DeviceControl", "com.example.intents.datawedgeintent.MainActivity", "com.example.intents.datawedgeintent.ResultsActivity", "com.example.intents.datawedgeintent.SettingsFragment1"}); Bundle bundleApp3 = new Bundle(); bundleApp3.putString("PACKAGE_NAME", "com.symbol.pubudu"); bundleApp3.putStringArray("ACTIVITY_LIST", new String[]{"*"}); Bundle bundleApp4 = new Bundle(); bundleApp4.putString("PACKAGE_NAME", "com.symbol.myzebraapp"); bundleApp4.putStringArray("ACTIVITY_LIST", new String[]{"*"}); // ADD APP_LIST BUNDLE(S) INTO THE MAIN BUNDLE bMain.putParcelableArray("APP_LIST", new Bundle[]{ bundleApp1 , bundleApp2 , bundleApp3 , bundleApp4 }); // AppList [End] Bundle bConfigDCP = new Bundle(); Bundle bParamsDCP = new Bundle(); bParamsDCP.putString("dcp_input_enabled", "true"); bParamsDCP.putString("dcp_dock_button_on", "LEFT"); //Supported values: BOTH - Left or Right, LEFT - Left only, RIGHT - Right only bParamsDCP.putString("dcp_start_in", "FULLSCREEN"); //Supported Values: FULLSCREEN, BUTTON, BUTTON_ONLY bParamsDCP.putString("dcp_highest_pos", "10"); //Supported Values: 0 - 100 bParamsDCP.putString("dcp_lowest_pos", "20"); //Supported Values: 0 - 100 bParamsDCP.putString("dcp_drag_detect_time", "501"); //Supported Values: 0 - 1000 bConfigDCP.putString("RESET_CONFIG", "true"); bConfigDCP.putBundle("PARAM_LIST", bParamsDCP); bMain.putBundle("DCP", bConfigDCP); bMain.putString("PROFILE_NAME", "Profile007"); bMain.putString("PROFILE_ENABLED", "true"); bMain.putString("CONFIG_MODE", "CREATE_IF_NOT_EXIST"); Intent iSetConfig = new Intent(); iSetConfig.setAction("com.symbol.datawedge.api.ACTION"); iSetConfig.putExtra("com.symbol.datawedge.api.SET_CONFIG", bMain); iSetConfig.putExtra("SEND_RESULT", "COMPLETE_RESULT"); //Supported values: NONE, LAST_RESULT, COMPLETE_RESULT iSetConfig.putExtra("COMMAND_IDENTIFIER", "INTENT_API"); //SetConfig [End] this.sendBroadcast(iSetConfig); } private BroadcastReceiver broadcastReceiver = new BroadcastReceiver() { @Override public void onReceive(Context context, Intent intent) { String action = intent.getAction(); String strFinalResult = ""; String command = intent.getStringExtra("COMMAND"); String profileName = intent.getStringExtra("PROFILE_NAME"); String resultInfo = ""; if (action.equals("com.symbol.datawedge.api.RESULT_ACTION")) { if (intent.hasExtra("RESULT_LIST")) { // returns for COMPLETE_RESULT resultInfo += "ProfileName: " + profileName + "\n"; ArrayList<Bundle> result_list = (ArrayList)intent.getSerializableExtra("RESULT_LIST"); for (Bundle bundleResult : result_list) { resultInfo +="\n\n"; Set<String> keys = bundleResult.keySet(); for (String key : keys) { String val = bundleResult.getString(key); if (val == null) { if (bundleResult.getStringArray(key) != null) { val = ""; for (String s : bundleResult.getStringArray(key)) { val += "" + s + "\n"; } } } resultInfo += key + ": " + val + "\n"; } } } if (command != null) { if (command.equalsIgnoreCase("com.symbol.datawedge.api.SET_CONFIG")) { Log.d("TAG", "#IntentApp# \n\nSetConfig status received:\nResultInfo: \n" + resultInfo); } } } } };

グローバル スキャナ構成の設定

Bundle bConfig = new Bundle(); bConfig.putString("PLUGIN_NAME","BARCODE"); Bundle bParams = new Bundle(); bParams.putString("scanner_input_enabled", "true"); bParams.putString("configure_all_scanners", "true"); // configure for all scanners bConfig.putBundle("PARAM_LIST", bParams);

プレゼンテーション モードの設定

// MAIN BUNDLE PROPERTIES Bundle bMain = new Bundle(); bMain.putString("PROFILE_NAME", "Profile1"); bMain.putString("PROFILE_ENABLED", "true"); bMain.putString("CONFIG_MODE", "CREATE_IF_NOT_EXIST"); // PLUGIN_CONFIG BUNDLE PROPERTIES Bundle bConfig = new Bundle(); bConfig.putString("PLUGIN_NAME", "BARCODE"); bConfig.putString("RESET_CONFIG", "true"); // PARAM_LIST BUNDLE PROPERTIES Bundle bParams = new Bundle(); bParams.putString("scanner_selection_by_identifier", "INTERNAL_IMAGER"); bParams.putString("scanner_input_enabled" , "true"); bParams.putString("aim_type", "4"); // presentation mode bParams.putString("scene_detect_qualifier ", "0"); // 0- None and 1- Proximity Sensor Input … bConfig.putBundle("PARAM_LIST", bParams); bMain.putBundle("PLUGIN_CONFIG", bConfig); Intent i = new Intent(); i.setAction("com.symbol.datawedge.api.ACTION"); i.putExtra("com.symbol.datawedge.api.SET_CONFIG", bMain); this.sendBroadcast(i);

文字セット構成

// MAIN BUNDLE PROPERTIES Bundle bMain = new Bundle(); bMain.putString("PROFILE_NAME", "ProfileCharSet"); bMain.putString("PROFILE_ENABLED", "true"); bMain.putString("CONFIG_MODE", "CREATE_IF_NOT_EXIST"); // PLUGIN_CONFIG BUNDLE PROPERTIES Bundle bConfig = new Bundle(); bConfig.putString("PLUGIN_NAME", "BARCODE"); bConfig.putString("RESET_CONFIG", "true"); // PARAM_LIST BUNDLE PROPERTIES Bundle bParams = new Bundle(); bParams.putString("scanner_selection_by_identifier", "INTERNAL_IMAGER"); bParams.putString("charset_name", "AUTO"); bParams.putString("auto_charset_preferred_order", "GB2312;UTF-8"); bParams.putString("auto_charset_failure_option", "UTF-8"); bConfig.putBundle("PARAM_LIST", bParams); bMain.putBundle("PLUGIN_CONFIG", bConfig); Intent i = new Intent(); i.setAction("com.symbol.datawedge.api.ACTION"); i.putExtra("com.symbol.datawedge.api.SET_CONFIG", bMain); this.sendBroadcast(i);

エンタープライズ キーボード構成の設定

//SetConfig [Start] Bundle bMain = new Bundle(); Bundle bConfigEKB = new Bundle();

Bundle bParamsEKB = new Bundle(); bParamsEKB.putString("ekb_enabled", "true"); // Supported values: true/false Bundle layoutParams = new Bundle(); layoutParams.putString("layout_group", "EKBCustomLayouts"); layoutParams.putString("layout_name", "qwerty"); bParamsEKB.putBundle("ekb_layout", layoutParams); //bParamsEKB.putBundle("ekb_layout", null); // To set to default bConfigEKB.putString("RESET_CONFIG", "false"); bConfigEKB.putBundle("PARAM_LIST", bParamsEKB); bMain.putBundle("EKB", bConfigEKB); bMain.putString("PROFILE_NAME", "ZebraEKB"); bMain.putString("PROFILE_ENABLED", "true"); bMain.putString("CONFIG_MODE", "CREATE_IF_NOT_EXIST"); Intent iSetConfig = new Intent(); iSetConfig.setAction("com.symbol.datawedge.api.ACTION"); iSetConfig.putExtra("com.symbol.datawedge.api.SET_CONFIG", bMain); iSetConfig.putExtra("SEND_RESULT", "LAST_RESULT"); iSetConfig.putExtra("COMMAND_IDENTIFIER", "INTENT_API"); //SetConfig [End] this.sendBroadcast(iSetConfig);

マルチスキャナ モードの設定

マルチスキャナ モードを設定および構成します。スキャナ パラメータ リストは、ArrayList が渡されることによって複数の構成をサポートするように拡張されています。単一のスキャナをサポートしている場合は、スキャナ パラメータ リストとしてバンドル データ タイプが渡されます。

Bundle bMain = new Bundle(); bMain.putString("PROFILE_NAME", "Profile009"); bMain.putString("PROFILE_ENABLED", "true"); bMain.putString("CONFIG_MODE", "CREATE_IF_NOT_EXIST"); Bundle bConfig = new Bundle(); bConfig.putString("PLUGIN_NAME","BARCODE"); bConfig.putString("RESET_CONFIG","true"); bConfig.putString("SCANNER_INPUT_ENABLED","true"); //LEFT, RIGHT, CENTER, GUN, PROXIMITY //AUTO,INTERNAL_IMAGER,INTERNAL_LASER,INTERNAL_CAMERA,SERIAL_SSI,BLUETOOTH_SSI,BLUETOOTH_RS6000,BLUETOOTH_DS2278,BLUETOOTH_DS3678,PLUGABLE_SSI,PLUGABLE_SSI_RS5000,USB_SSI_DS3608 Bundle scanner1Params = new Bundle(); scanner1Params.putString("scanner_selection_by_identifier", "INTERNAL_IMAGER"); scanner1Params.putStringArray("scanner_trigger_resource", new String[]{"LEFT", "RIGHT"}); //Required triggers scanner1Params.putString("decoder_code11", "true"); scanner1Params.putString("decoder_code39", "false"); scanner1Params.putString("picklist", "1"); Bundle scanner2Params = new Bundle(); scanner2Params.putString("scanner_selection_by_identifier", "BLUETOOTH_RS6000"); scanner2Params.putStringArray("scanner_trigger_resource", new String[]{"CENTER"}); //Required triggers scanner2Params.putString("decoder_code11", "true"); scanner2Params.putString("decoder_code128", "false"); scanner2Params.putString("picklist", "2"); ArrayList<Bundle> scannerParamList = new ArrayList<>(); scannerParamList.add(scanner1Params); scannerParamList.add(scanner2Params); bConfig.putParcelableArrayList("PARAM_LIST", scannerParamList); bMain.putBundle("PLUGIN_CONFIG", bConfig); //true, false Intent i = new Intent(); i.setAction("com.symbol.datawedge.api.ACTION"); i.putExtra("com.symbol.datawedge.api.SET_CONFIG", bMain); i.putExtra("SEND_RESULT","LAST_RESULT"); i.putExtra("COMMAND_IDENTIFIER", "SET_CONFIG"); this.sendBroadcast(i);
