UDI Label Scanning

Shows how the Barcode API's UDI label scanning features are used.

Download Source

Product

EMDK For Android - 7.3

Devices

MC33 N/O, PS20 O, TC51 M/N/O, TC52 O, TC56 M/N/O, TC57 O, TC70x M/N/O, TC72 O, TC75x M/N/O, TC77 O

Overview

This sample app demonstrates how to scan barcodes that use any of the three Unique Device Identification (UDI) standards: GS1, ICCBBA, and HIBCC.

NOTES

  • This sample illustrates a single use-case for implementing UDI label scanning features; it is not a comprehensive example of the many ways this feature could be used.
  • For a complete barcode scanning implementation example, see Barcode Sample 1.

Requirements

  • Android Studio on a Mac or Windows PC with Android API 22 (or higher) installed.
    See EMDK Setup Guide for help.
  • A supported Zebra Android device (see list above)
  • A scan target containing a UDI barcode

Using Sample App

NOTE: The appearance of sample app screens can vary by sample app version, Android version and screen size.

Before beginning, download, build and install the sample app.
See the Sample App Set-up Guide for help.

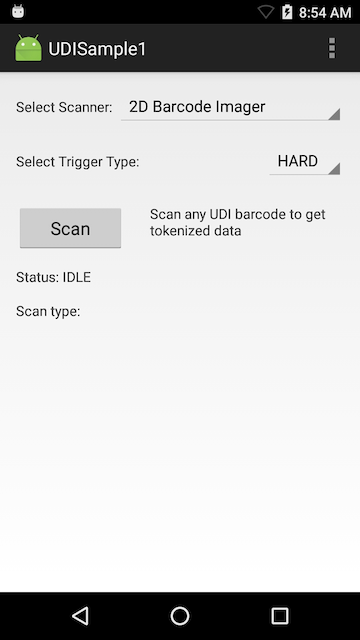

  1. Set the Trigger type set to "Hard" and tap the Scan button to enable the scanner. The status are displays "Waiting" similar to the image below:


  2. Point the device at a UDI label and press the hardware scan trigger. The UDI label type and its UDI data are displayed:


NOTE: Sample apps are for demonstration purposes only and should not be used in production environments.
