Advanced Scanning Tutorial using Barcode API

EMDK For Android 2.3

Overview

This guide will walk you through creating an EMDK For Android application that will use Barcode/Scanning APIs introduced in EMDK V 3.0, to perform some of the additional options along with Scanning operations on your Symbol Android devices without using Profile Wizard. The API uses Barcode Manager, which is the primary object to access barcode scanning feature.

In this tutorial, we will explore the Barcode/Scanning API by using some of its features for developing an advanced application that will scan barcodes. The application focuses on scanning the barcodes using soft scan trigger, which would be a button that we are going to use in the application itself and not the hard scan trigger on the device.

Note: You don't need the Profile Wizard while using the Barcode/Scanning APIs as everything could be configured programmatically through code.

We will be configuring following features:

  • Device Types: Using this feature, we will get the scanning devices supported by a specific Symbol device (Ex. Serial SSI Scanner, Camera Scanner etc.)

  • Decoder Params: This feature will be used to configure various types of decoders through our applications for scanning specific type of decoder scanner. (Ex. Code 11, Code 39, UPCA etc.)

  • Reader Params: Reader params are used to configure reader specific options of a particular scanning device. In this tutorial, we will configure Illumination Mode for "Camera Scanner".

Note: "Illumination Mode" is available only for Camera Scanner device.

  • Scan Params: ScanParams class provides access to scanning parameters that are available for all decoders. In this tutorial we will configure following Scanning Params:
  1. Vibration: This Scan Param is used to configure Vibration of the scanner device when scanning barcodes.
  2. Scan Tone: This Scan Param is used to set Scan tone while scanning barcodes. We can apply various media, notification or alarm tones to the device while scanning barcodes. We can also keep a silent tone by not passing any parameter to this attribute. In this tutorial, we will provide a list of Scan Tones for the user to select including silent mode where we won't pass any parameter to Scan Tone attribute.

Prerequisites

For more information about setting up the EMDK please see the EMDK Overview.

Creating The Project

Note: Provide "AdvancedScanningTutorial" as the project name for this tutorial.

If you are using Android Studio, click here.

If you are using Eclipse with ADT, click here.

Enabling the EMDK

If you are using Android Studio, you have already completed this step while creating the project by selecting EMDK 3.1 (API 16) (Symbol Technologies, Inc.) (API 16) or EMDK 3.1 (API 19) (Symbol Technologies, Inc.) (API 19) as the minimum SDK.

If you are using Eclipse with ADT, click here for Enabling the EMDK tutorial as it would again be a common step for all of your projects that are using EMDK for Android API.

Enabling Android Permissions

  1. Modify the Application's Manifest.xml to use the EMDK library and to set permission for the EMDK to scan the barcodes.


    You must first enable permissions for 'com.symbol.emdk.permission.EMDK':


    <uses-permission android:name="com.symbol.emdk.permission.EMDK" />


    Then you must enable the library for EMDK:


    <uses-library android:name="com.symbol.emdk" />


    When done, your manifest.xml should look like:


Adding Some Code

  1. Now we will start to add some code.

    First you must add references to the libraries:


    import com.symbol.emdk.EMDKManager;
    import com.symbol.emdk.EMDKManager.EMDKListener;
    import com.symbol.emdk.barcode.ScanDataCollection;
    import com.symbol.emdk.barcode.Scanner.DataListener;
    import com.symbol.emdk.barcode.Scanner.StatusListener;
    import com.symbol.emdk.barcode.StatusData;


    Then you must extend the activity to implement EMDKListener. Use Eclipse's Content Assist to implement the unimplemented functions of onOpened and onClosed.

    After that you also need to implement StatusListener for notifying client applications to notify scan events. Override its onStatus function.

    Implement DataListener for notifying client applications when the scan data is available. Override its onData function.

    Finally, we will implement OnCheckedChangeListener that has an overriden method onCheckedChanged, which gets called whenever the user checks or unchecks any checkbox. We will be using checkboxes for various decoders that user can check or uncheck based on the requirement.


    public class MainActivity extends Activity implements EMDKListener,
    StatusListener, DataListener, OnCheckedChangeListener {


    .. .. .. .. .. .. ...

    @Override public void onClosed() { // TODO Auto-generated method stub } @Override public void onOpened(EMDKManager arg0) { // TODO Auto-generated method stub } @Override public void onData(ScanDataCollection scanDataCollection) { // TODO Auto-generated method stub } @Override public void onStatus(StatusData statusData) { // TODO Auto-generated method stub } @Override public void onCheckedChanged(CompoundButton buttonView, boolean isChecked) { // TODO Auto-generated method stub } }

    Note: If you are using Android Studio, press CTRL+ALT+O or CMD+ALT+O to organize imports.

    OR

    If you are using Eclipse with ADT, press CTRL+SHFT+O or CMD+SHFT+O to organize imports.

    We will now create some global variables to hold the instance objects of EMDKManager, BarcodeManager and Scanner. These variables would be used throughout the code.

    It will have some UI elements such as Checkboxes to

    We will then add some UI elements starting with a TextView to display the status of scanning operation and then EditText to populate scanned barcode data.

    We will also declare a boolean variable to call setProfile() method only when required avoiding scanner exceptions while setting profile.


    // Declare a variable to store EMDKManager object
    private EMDKManager emdkManager = null;

    // Declare a variable to store Barcode Manager object
    private BarcodeManager barcodeManager = null;

    // Declare a variable to hold scanner device to scan
    private Scanner scanner = null;

    // Button to scan barcodes through the app using soft trigger
    private Button scanButton;

    // Text view to display status of EMDK and Barcode Scanning Operations
    private TextView statusTextView = null;

    // Edit Text that is used to display scanned barcode data
    private EditText dataView = null;

    // CheckBox to set Decoder Param Code 11;
    private CheckBox checkBoxCode11;

    // CheckBox to set Decoder Param Code 39;
    private CheckBox checkBoxCode39;

    // CheckBox to set Decoder Param Code 128;
    private CheckBox checkBoxCode128;

    // CheckBox to set Decoder Param Code UPCA;
    private CheckBox checkBoxCodeUPCA;

    // CheckBox to set Decoder Param EAN 8;
    private CheckBox checkBoxEAN8;

    // CheckBox to set Decoder Param EAN 13;
    private CheckBox checkBoxEAN13;

    // CheckBox to set Reader Param Illumination Mode;
    private CheckBox checkBoxIlluminationMode;

    // CheckBox to set Scan Param Vibration Mode (decodeHapticFeedback);
    private CheckBox checkBoxVibrationMode;

    // Drop Down for selecting scanner devices
    private Spinner deviceSelectionSpinner;

    // Drop Down for selecting the type of streaming on which the scan beep
    // should
    // be played
    private Spinner scanToneSpinner;

    // Array Adapter to hold arrays that are used in various drop downs
    private ArrayAdapter<String> spinnerDataAdapter;

    // List of supported scanner devices
    private List<ScannerInfo> deviceList;

    // Provides current scanner index in the device Selection Spinner
    private int scannerIndex = 0;

    // Boolean to avoid calling setProfile() method again in the scan tone
    // listener
    private boolean isScanToneFirstTime;


    The code till here looks like:


    and the remaining part looks like:


    Note: Due to more variables, it has been divided into multiple screen captures.

  2. Now, let us design the simple UI that has fields for each of the features mentioned above starting with Spinner to display list of scanner devices and scan tones at the bottom. It will then have some Checkboxes to display decoder params, reader params and scan params for scanner. We then have a Button that would be set as a soft trigger in the app to scan barcodes later in this tutorial as we are not using the hard scan trigger of the device. Finally the screen has a TextView to display the status of scanning operation and above that an EditText to populate scanned barcode data. Since the UI has lots of elements, we need to embed it in a ScrollView to view all the UI elements.

    So, remove all the code, inside "res/layout/activity_main.xml" and add following XML layout code for UI.


    <ScrollView xmlns:android="https://schemas.android.com/apk/res/android"
    android:layout_width="fill_parent"
    android:layout_height="fill_parent"
    android:paddingBottom="5dip" >


    &lt;RelativeLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content" &gt;

        &lt;TextView
            android:id="@+id/device_Selection"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:layout_margin="5dip"
            android:text="Select Scanner Device Type:"
            android:textSize="16sp"
            android:textStyle="bold" /&gt;

        &lt;Spinner
            android:id="@+id/device_selection_spinner"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:layout_below="@+id/device_Selection"
            android:layout_margin="5dip" /&gt;

        &lt;TextView
            android:id="@+id/decoder_selection"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:layout_below="@+id/device_selection_spinner"
            android:layout_margin="5dip"
            android:text="Select Decoder Params:"
            android:textSize="16sp"
            android:textStyle="bold" /&gt;

        &lt;RelativeLayout
            android:id="@+id/decoder_layout"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:layout_below="@+id/decoder_selection"
            android:layout_margin="5dip" &gt;

            &lt;CheckBox
                android:id="@+id/checkBoxCode39"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_alignParentLeft="true"
                android:layout_margin="3dip"
                android:checked="true"
                android:text="Code 39"
                android:textSize="14sp" /&gt;

            &lt;CheckBox
                android:id="@+id/checkBoxCode128"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_margin="3dip"
                android:layout_toRightOf="@+id/checkBoxCode39"
                android:checked="true"
                android:text="Code 128"
                android:textSize="14sp" /&gt;

            &lt;CheckBox
                android:id="@+id/checkBoxUPCA"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_margin="3dip"
                android:layout_toRightOf="@+id/checkBoxCode128"
                android:checked="true"
                android:text="UPCA"
                android:textSize="14sp" /&gt;

            &lt;CheckBox
                android:id="@+id/checkBoxCode11"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_alignParentLeft="true"
                android:layout_below="@+id/checkBoxCode39"
                android:layout_margin="3dip"
                android:checked="true"
                android:text="Code 11"
                android:textSize="14sp" /&gt;

            &lt;CheckBox
                android:id="@+id/checkBoxEan8"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_below="@+id/checkBoxCode128"
                android:layout_margin="3dip"
                android:layout_toRightOf="@+id/checkBoxCode11"
                android:checked="true"
                android:text="EAN 8"
                android:textSize="14sp" /&gt;

            &lt;CheckBox
                android:id="@+id/checkBoxEan13"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_below="@+id/checkBoxUPCA"
                android:layout_marginLeft="25dip"
                android:layout_marginTop="3dip"
                android:layout_toRightOf="@+id/checkBoxEan8"
                android:checked="true"
                android:text="EAN 13"
                android:textSize="14sp" /&gt;
        &lt;/RelativeLayout&gt;

        &lt;TextView
            android:id="@+id/reader_selection"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:layout_below="@+id/decoder_layout"
            android:layout_margin="5dip"
            android:text="Select Reader Params:"
            android:textSize="16sp"
            android:textStyle="bold" /&gt;

        &lt;CheckBox
            android:id="@+id/illumination"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_alignParentLeft="true"
            android:layout_below="@+id/reader_selection"
            android:layout_margin="3dip"
            android:checked="false"
            android:text="Illumination Mode"
            android:textSize="14sp" /&gt;

        &lt;TextView
            android:id="@+id/scan_selection"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:layout_below="@+id/illumination"
            android:layout_margin="5dip"
            android:text="Select Scan Params:"
            android:textSize="16sp"
            android:textStyle="bold" /&gt;

        &lt;RelativeLayout
            android:id="@+id/scan_layout"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:layout_below="@+id/scan_selection"
            android:layout_margin="5dip" &gt;

            &lt;CheckBox
                android:id="@+id/vibration"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_alignParentLeft="true"
                android:layout_margin="3dip"
                android:checked="false"
                android:text="Vibration"
                android:textSize="14sp" /&gt;

            &lt;TextView
                android:id="@+id/scan_tone"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:layout_below="@+id/vibration"
                android:layout_margin="5dip"
                android:text="Select Scan Tone:"
                android:textSize="14sp" /&gt;

            &lt;Spinner
                android:id="@+id/scan_tone_spinner"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:layout_below="@+id/scan_tone"
                android:layout_margin="5dip" /&gt;
        &lt;/RelativeLayout&gt;

        &lt;Button
            android:id="@+id/btn_scan"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_below="@+id/scan_layout"
            android:layout_centerHorizontal="true"
            android:layout_margin="5dip"
            android:text="Scan" /&gt;

        &lt;EditText
            android:id="@+id/editText1"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_below="@+id/btn_scan"
            android:layout_centerHorizontal="true"
            android:ems="10"
            android:fadeScrollbars="true"
            android:focusableInTouchMode="false"
            android:inputType="none|textMultiLine" /&gt;

        &lt;TextView
            android:id="@+id/textViewStatusTitle"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_below="@+id/editText1"
            android:layout_centerHorizontal="true"
            android:text="Status:" /&gt;

        &lt;TextView
            android:id="@+id/textViewStatus"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_below="@+id/textViewStatusTitle"
            android:layout_centerHorizontal="true"
            android:layout_marginBottom="10dip"
            android:text="" /&gt;
    &lt;/RelativeLayout&gt;

    </ScrollView>

    Note: If you are using Eclipse with ADT, press CTRL+SHFT+F or CMD+SHFT+F for indentation.

    OR

    If you are using Android Studio, press CTRL+ALT+I or CMD+ALT+I for indentation.

    The code till here looks like:


  3. In the onCreate method, we take reference of UI elements that are declared in res/layout/activity_main.xml in order to use them in our Activity. We would then set OnCheckedChangeListener for all the checkboxes followed by setOnTouchListener for the "Scan" button that we have declared in UI.

    We will also set the Spinner Adapter to hold the list of Scanner devices and Scan Tones followed by the listener calls for both spinners.

    We then call getEMDKManager so that the EMDK can be initialized and checked to see if it is ready.


    // Reference to UI elements
    statusTextView = (TextView) findViewById(R.id.textViewStatus);
    dataView = (EditText) findViewById(R.id.editText1);
    checkBoxCode11 = (CheckBox) findViewById(R.id.checkBoxCode11);
    checkBoxCode39 = (CheckBox) findViewById(R.id.checkBoxCode39);
    checkBoxCode128 = (CheckBox) findViewById(R.id.checkBoxCode128);
    checkBoxCodeUPCA = (CheckBox) findViewById(R.id.checkBoxUPCA);
    checkBoxEAN8 = (CheckBox) findViewById(R.id.checkBoxEan8);
    checkBoxEAN13 = (CheckBox) findViewById(R.id.checkBoxEan13);

    checkBoxIlluminationMode = (CheckBox) findViewById(R.id.illumination);
    checkBoxVibrationMode = (CheckBox) findViewById(R.id.vibration);

    checkBoxCode11.setOnCheckedChangeListener(this);
    checkBoxCode39.setOnCheckedChangeListener(this);
    checkBoxCode128.setOnCheckedChangeListener(this);
    checkBoxCodeUPCA.setOnCheckedChangeListener(this);
    checkBoxEAN8.setOnCheckedChangeListener(this);
    checkBoxEAN13.setOnCheckedChangeListener(this);
    checkBoxIlluminationMode.setOnCheckedChangeListener(this);
    checkBoxVibrationMode.setOnCheckedChangeListener(this);

    deviceSelectionSpinner = (Spinner) findViewById(R.id.device_selection_spinner);
    scanToneSpinner = (Spinner) findViewById(R.id.scan_tone_spinner);

    // Adapter to hold the list of scan tone options
    spinnerDataAdapter = new ArrayAdapter<String>(this,
            android.R.layout.simple_spinner_item, getResources()
                    .getStringArray(R.array.scan_tone_array));
    spinnerDataAdapter
            .setDropDownViewResource(android.R.layout.simple_spinner_dropdown_item);
    // Set adapter to scan tone drop down
    scanToneSpinner.setAdapter(spinnerDataAdapter);

    // Add onClick listener for scan button to enable soft scan through app
    addScanButtonListener();

    // On Item Click Listener of Scanner Devices Spinner
    addSpinnerScannerDevicesListener();

    // On Item Click Listener of Scan Tone Spinner
    addSpinnerScanToneListener();

    // The EMDKManager object will be created and returned in the callback.
    EMDKResults results = EMDKManager.getEMDKManager(
            getApplicationContext(), this);
    // Check the return status of getEMDKManager and update the status Text
    // View accordingly
    if (results.statusCode != EMDKResults.STATUS_CODE.SUCCESS) {
        statusTextView.setText("EMDKManager Request Failed");
    }


    So the complete onCreate method looks like:


  4. You will see some errors, which we need to get rid of. So first, we need to provide scan_tone_array to the spinner data adapter. So create arrays.xml file under res/values folder and write following code of array in <resources> tag. This will remove the adapter error.


    <!-- Array of type of streaming on which the scan beep should be played -->
    <string-array name="scan_tone_array">
      <item>NONE (Silent Mode)</item>
      <item>Adara.ogg</item>
      <item>Antimony.ogg</item>
      <item>Xenon.ogg</item>
      <item>Vega.ogg</item>
      <item>decode-short.wav</item>
      <item>decode.wav</item>
    </string-array>


    So the complete arrays.xml code looks like:


  5. Next, We need to add listeners for Scanner Devices and Scan Tone spinners. The listener for scanner devices spinner will disable the scanner if there is any using deInitScanner method and create new scanner instance of scanner device selected from this spinner with the help of index stored in scannerIndex using initializeScanner method. It will then call setProfile method which will set whatever the parameters are enabled in the User interface for various features.

    Note: We need to re-initialize the scanner and set the properties as we change the device type.

    The listener for scan tone will simply call setProfile method, which will set the parameters selected by user on the User Interface.

    Note: For scan tone spinner listener, we don't need to re-initialize scanner as we are not changing scanner device.


    // Listener for Scanner Device Spinner
    private void addSpinnerScannerDevicesListener() {

     deviceSelectionSpinner
                .setOnItemSelectedListener(new OnItemSelectedListener() {


        @Override
        public void onItemSelected(AdapterView&lt;?&gt; parent,
                        View arg1, int position, long arg3) {

            scannerIndex = position;
            try {
                deInitScanner();
                initializeScanner();
                setProfile();
            } catch (ScannerException e) {
                        e.printStackTrace();
            }
        }

        @Override
        public void onNothingSelected(AdapterView&lt;?&gt; arg0) {
            // TODO Auto-generated method stub
        }
    });

    } // Listener for Scan Tone Spinner private void addSpinnerScanToneListener() {
    scanToneSpinner.setOnItemSelectedListener(new OnItemSelectedListener() {

        @Override
        public void onItemSelected(AdapterView&lt;?&gt; parent, View arg1,
                int position, long arg3) {

            // Ignore Scan Tone spinner firing of for the first time, which
            // is not required
            if (isScanToneFirstTime)
                setProfile();
            else
                isScanToneFirstTime = true;
        }

        @Override
        public void onNothingSelected(AdapterView&lt;?&gt; arg0) {
            // TODO Auto-generated method stub
        }
    });

    }

    Note: The purpose of isScanToneFirstTime boolean is to simply avoid calling setProfile again in the scan tone spinner initially, as it has already been set in the device spinner.

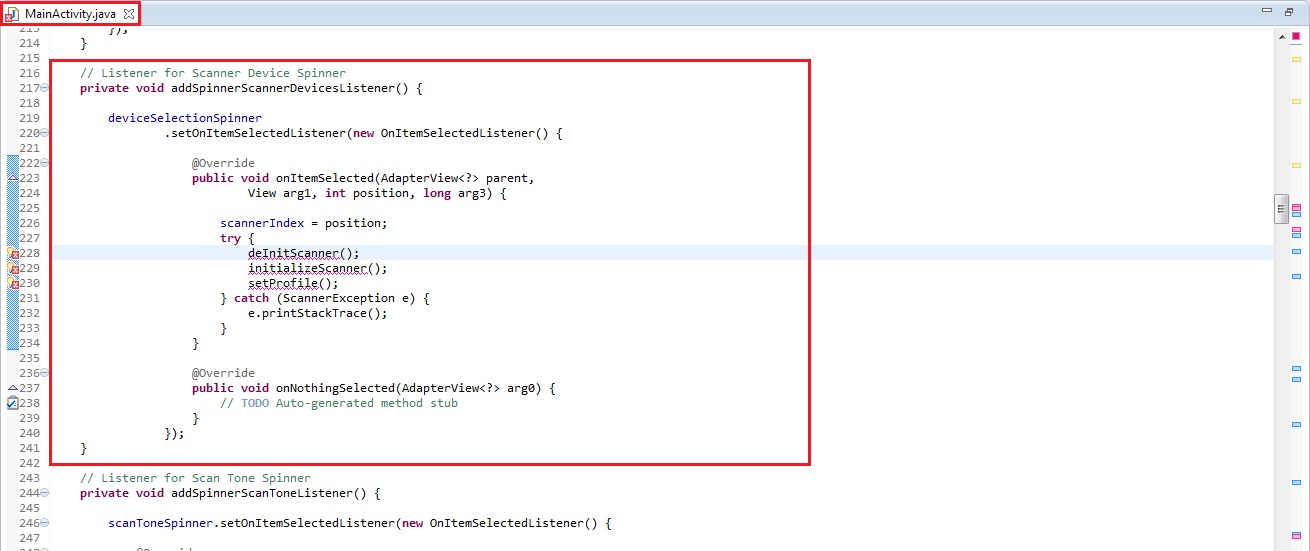

    This is how it looks like:



  6. We will now add the setOnTouchListener for Scan button. The purpose behind this is to scan barcodes by calling read method when user presses the Scan button and stop scanning by canceling any pending asynchronous read calls using cancelRead method when user releases the Scan button. The read method will not turn ON the scanner. It will, however, put the scanner in a state in which the scanner can be turned ON either by pressing a hardware trigger or can be turned ON automatically. This is determined by the Scanner.TriggerType. In order to scan barcodes using button through our application, we need to set the trigger type to TriggerType.SOFT_ONCE where the scan beam will come up automatically without having to press the hard scan trigger on the device after issuing the read call.


    // Listener for scan button that uses soft scan to scan barcodes through app
    private void addScanButtonListener() {
        Button scanButton = (Button) findViewById(R.id.btn_scan);
        // On Touch listener for scan button that scans barcodes when pressed
        // and stops
        // scanning when the button is released
        scanButton.setOnTouchListener(new OnTouchListener() {
            @Override
            public boolean onTouch(View v, MotionEvent event) {
                // Scan Button Press Event
                if (event.getAction() == MotionEvent.ACTION_DOWN) {
                    try {
                        // Enable Soft scan
                        scanner.triggerType = TriggerType.SOFT_ONCE;
                        // cancel any pending reads before reading barcodes
                        if (scanner.isReadPending())
                            scanner.cancelRead();
                        // Puts the device in a state where it can scan barcodes
                        scanner.read();
                    } catch (ScannerException e) {
                        e.printStackTrace();
                    }
                    // Scan Button Release Event
                } else if (event.getAction() == MotionEvent.ACTION_UP) {
                    try {
                        // cancel any pending reads before reading barcodes
                        if (scanner.isReadPending())
                            scanner.cancelRead();
                    } catch (ScannerException e) {
                        e.printStackTrace();
                    }
                }
                return false;
            }
        });
    }



  7. It will still show few errors as we have not specified the required methods yet. So first we will add deInitScanner() method that cancels any pending read operations, removes all status and data listeners, disables the existing scanner instance and sets the scanner instance to NULL.


    // Disable the scanner instance
    private void deInitScanner() {


    if (scanner != null) {
        try {
            scanner.cancelRead();

            scanner.removeDataListener(this);
            scanner.removeStatusListener(this);
            scanner.disable();

        } catch (ScannerException e) {
            // TODO Auto-generated catch block
            statusTextView.setText("Status: " + e.getMessage());
        }
        scanner = null;
    }

    }

    This is how deInitScanner method looks like:


  8. Next, we will write a method initializeScanner to initialize and enable the scanner and its listeners such as status, data etc. by using Barcode Manager object. The enable method enables the scanner hardware. This method does not make the scanner to scan or turn on the laser. Basically it will make the scanner device available for your application. If the same of scanner is enabled by other applications, this will throws ScannerExceptions. You must call disable() when you are done the scanning, otherwise it will remain locked and be unavailable to other applications.

    In case of any errors, the statusTextView will display a failure message to notify user.


    // Method to initialize and enable Scanner and its listeners
    private void initializeScanner() throws ScannerException {


    if (deviceList.size() != 0) {
        scanner = barcodeManager.getDevice(deviceList.get(scannerIndex));
    } else {
        statusTextView
                .setText("Status: "
                        + "Failed to get the specified scanner device! Please close and restart the application.");
    }

    if (scanner != null) {

        // Add data and status listeners
        scanner.addDataListener(this);
        scanner.addStatusListener(this);

        try {
            // Enable the scanner
            scanner.enable();

        } catch (ScannerException e) {
            // TODO Auto-generated catch block
            statusTextView.setText("Status: " + e.getMessage());
        }
    }

    }

    This is how initializeScanner method looks like:


  9. Now, we will add setProfile method. This method will create an instance of ScannerConfig, which will allow us to modify scanner properties (Ex. Decoder Params, Reader Params, Scan Params etc.) and set the changes back to the scanner instance. Here, we will read the checkboxes and spinner values and set them accordingly to the scanner instance through ScannerConfig. config is name of ScannerConfig instance.

    Initially we will cancel any pending asynchronous read calls before applying profile and reading barcodes using cancelRead method on the scanner instance.

    config.decoderParams allows us to set all the decoder params such as code11,code39 etc. readerParams.readerSpecific.cameraSpecific.illuminationMode enables user to set Illumination Mode, which is available only for CameraSpecific devices. config.scanParams.decodeHapticFeedback lets you set Vibration Mode of the scanning device. config.scanParams.decodeAudioFeedbackUri will accept a URI for the Audio Tone that user needs to set while scanning a barcode.

    Note: An empty URI (Ex. config.scanParams.decodeAudioFeedbackUri = "";) indicates that there will not be any scan tone while scanning a barcode. In other words, it would be your silent mode.


    // Sets the user selected Barcode scanning Profile
    public void setProfile() {
        try {


        // cancel any pending asynchronous read calls before applying profile
        // and start reading barcodes
        if (scanner.isReadPending())
            scanner.cancelRead();

        ScannerConfig config = scanner.getConfig();

        // Set code11
        if (checkBoxCode11.isChecked()) {
            config.decoderParams.code11.enabled = true;
        } else {
            config.decoderParams.code11.enabled = false;
        }

        // Set code39
        if (checkBoxCode39.isChecked()) {
            config.decoderParams.code39.enabled = true;
        } else {
            config.decoderParams.code39.enabled = false;
        }

        // Set code128
        if (checkBoxCode128.isChecked()) {
            config.decoderParams.code128.enabled = true;
        } else {
            config.decoderParams.code128.enabled = false;
        }

        // set codeUPCA
        if (checkBoxCodeUPCA.isChecked()) {
            config.decoderParams.upca.enabled = true;
        } else {
            config.decoderParams.upca.enabled = false;
        }

        // set EAN8
        if (checkBoxEAN8.isChecked()) {
            config.decoderParams.ean8.enabled = true;
        } else {
            config.decoderParams.ean8.enabled = false;
        }

        // set EAN13
        if (checkBoxEAN13.isChecked()) {
            config.decoderParams.ean13.enabled = true;
        } else {
            config.decoderParams.ean13.enabled = false;
        }

        // set Illumination Mode, which is available only for
        // INTERNAL_CAMERA1 device type
        if (checkBoxIlluminationMode.isChecked()
                &amp;&amp; deviceSelectionSpinner.getSelectedItem().toString()
                        .contains("Camera")) {
            config.readerParams.readerSpecific.cameraSpecific.illuminationMode = IlluminationMode.ON;
        } else {
            config.readerParams.readerSpecific.cameraSpecific.illuminationMode = IlluminationMode.OFF;
        }

        // set Vibration Mode (decodeHapticFeedback)
        if (checkBoxVibrationMode.isChecked()) {
            config.scanParams.decodeHapticFeedback = true;
        } else {
            config.scanParams.decodeHapticFeedback = false;
        }

        // Set the Scan Tone selected from the Scan Tone Spinner
        config.scanParams.audioStreamType = AudioStreamType.RINGER;
        String scanTone = scanToneSpinner.getSelectedItem().toString();
        if (scanTone.contains("NONE"))
            // Silent Mode (No scan tone will be played)
            config.scanParams.decodeAudioFeedbackUri = "";
        else
            // Other selected scan tones from the drop-down
            config.scanParams.decodeAudioFeedbackUri = "system/media/audio/notifications/"
                    + scanTone;

        scanner.setConfig(config);

        // Starts an asynchronous Scan. The method will not turn
        // ON the
        // scanner. It will, however, put the scanner in a state
        // in which
        // the scanner can be turned ON either by pressing a
        // hardware
        // trigger or can be turned ON automatically.
        scanner.read();

        Toast.makeText(MainActivity.this,
                "Changes Appplied. Press Scan Button to start scanning...",
                Toast.LENGTH_SHORT).show();

    } catch (ScannerException e) {
        statusTextView.setText(e.toString());
    }

    }

    The setProfile method looks like:


  10. Whenever the user checks or unchecks any checkbox, we update the settings to the scanner instance at runtime by calling setProfile() method through onCheckedChanged method of the OnCheckedChangeListener that we implemented earlier. So add the method call in onCheckedChanged() method.


    setProfile();


    This looks like:


  11. Now we need to use the onOpened method to get a reference to the EMDKManager. The EMDKListener interface will trigger this event when the EMDK is ready to be used. The EMDKListener interface must be implemented in order to get a reference to the EMDKManager APIs. This event will pass the EMDKManager instance and we assign it to the global variable emdkManager that we created in the earlier steps. We have used that instance to get an instance of Barcode Manager to enable scanning.

    Once that is done, we need to get all the scanner devices that a Symbol Android device supports with the default one selected first using enumerateScannerDevices() that we will declare in the next step. We are not calling initializeScanner() and setProfile methods here as we have already called them in the device selection spinner listener.

    Note: Rename the argument of onOpened method from arg0 to emdkManager


    this.emdkManager = emdkManager;

    // Get the Barcode Manager object
    barcodeManager = (BarcodeManager) this.emdkManager
            .getInstance(FEATURE_TYPE.BARCODE);

    // Get the supported scanner devices
    enumerateScannerDevices();


    Your complete onOpened method should now look like this:


  12. To get rid of error, we will create enumerateScannerDevices that will get all the scanner devices that a Symbol Android device supports with the default one selected first. It uses getSupportedDevicesInfo method on barcodeManager instance that returns a list of supported scanner devices for that particular Symbol device. We will then iterate through this list, get the friendly names of each scanner device and add them to our list with those names to show user in Device Spinner.


    // Go through and get the available scanner devices
    private void enumerateScannerDevices() {


    if (barcodeManager != null) {

        List&lt;String&gt; friendlyNameList = new ArrayList&lt;String&gt;();
        int spinnerIndex = 0;
        // Set the default selection in the spinner
        int defaultIndex = 0;

        deviceList = barcodeManager.getSupportedDevicesInfo();

        if (deviceList.size() != 0) {

            Iterator&lt;ScannerInfo&gt; it = deviceList.iterator();
            while (it.hasNext()) {
                ScannerInfo scnInfo = it.next();
                friendlyNameList.add(scnInfo.getFriendlyName());
                if (scnInfo.isDefaultScanner()) {
                    defaultIndex = spinnerIndex;
                }
                ++spinnerIndex;
            }
        } else {
            statusTextView
                    .setText("Status: "
                            + "Failed to get the list of supported scanner devices! Please close and restart the application.");
        }

        spinnerDataAdapter = new ArrayAdapter&lt;String&gt;(MainActivity.this,
                android.R.layout.simple_spinner_item, friendlyNameList);
        spinnerDataAdapter
                .setDropDownViewResource(android.R.layout.simple_spinner_dropdown_item);

        deviceSelectionSpinner.setAdapter(spinnerDataAdapter);
        deviceSelectionSpinner.setSelection(defaultIndex);

    }

    }

    Your complete enumerateScannerDevices method should now look like this:


  13. As mentioned earlier that whenever a barcode is scanned, its data will be received in a callback onData method upon data availability. So we need to get that data, process it in the format we want and populate in the EditText of UI.

    The received data should be processed on a background thread not to block the UI thread. Hence we will use Android's own AsyncTask to process the scanned data on background thread. So we create AsyncTask AsyncDataUpdate that takes ScanDataCollection, which has the scanned data. It then processes this object in doInBackground method to filter the barcode data and label type in strings, which is then passed to the UI thread in onPostExecute method of AsyncTask to Populate.


    // Update the scan data on UI
    int dataLength = 0;

    // AsyncTask that configures the scanned data on background
    // thread and updated the result on UI thread with scanned data and type of
    // label
    private class AsyncDataUpdate extends
        AsyncTask<ScanDataCollection, Void, String> {

      @Override
      protected String doInBackground(ScanDataCollection... params) {
        ScanDataCollection scanDataCollection = params[0];


    // Status string that contains both barcode data and type of barcode
    // that is being scanned
    String statusStr = "";

    // The ScanDataCollection object gives scanning result and the
    // collection of ScanData. So check the data and its status
    if (scanDataCollection != null
            &amp;&amp; scanDataCollection.getResult() == ScannerResults.SUCCESS) {

        ArrayList&lt;ScanData&gt; scanData = scanDataCollection.getScanData();

        // Iterate through scanned data and prepare the statusStr
        for (ScanData data : scanData) {
            // Get the scanned data
            String barcodeDate = data.getData();
            // Get the type of label being scanned
            LabelType labelType = data.getLabelType();
            // Concatenate barcode data and label type
            statusStr = barcodeDate + " " + labelType;
        }
    }

    // Return result to populate on UI thread
    return statusStr;

    } @Override protected void onPostExecute(String result) { // Update the dataView EditText on UI thread with barcode data and // its label type if (dataLength++ > 50) { // Clear the cache after 50 scans dataView.getText().clear(); dataLength = 0; } dataView.append(result + "\n"); } @Override protected void onPreExecute() { } @Override protected void onProgressUpdate(Void... values) { } }

    We call this AsyncTask in overridden onData method, by creating an instance of AsyncDataUpdate and passing the scanDataCollection for further processing.


    // Use the scanned data, process it on background thread using AsyncTask
    // and update the UI thread with the scanned results
    new AsyncDataUpdate().execute(scanDataCollection);


    So the onData method and AsyncDataUpdate looks like: img

  14. Whether we scan the barcode by pressing the hard scan key or keep it idle, it returns the status of the scanner at specific point of time in the overridden onStatus method of implemented StatusListener interface. Since we are also displaying the status along with barcode data, we will make use of this method and populate the status.

    Just like scanned data, we are also processing the scanner status on a background thread. Hence we will create another AsyncTask named AsyncStatusUpdate that takes StatusData and processes it in doInBackground method to retrieve state in string format which is populated in status Text View on UI thread in onPostExecute method of the AsyncTask.


    // AsyncTask that configures the current state of scanner on background
    // thread and updates the result on UI thread
    private class AsyncStatusUpdate extends AsyncTask<StatusData, Void, String> {

      @Override
      protected String doInBackground(StatusData... params) {
        // Get the current state of scanner in background
        StatusData statusData = params[0];
        String statusStr = "";
        ScannerStates state = statusData.getState();
        // Different states of Scanner
        switch (state) {
        // Scanner is IDLE
        case IDLE:
            statusStr = "The scanner enabled and its idle";
            isScanning = false;
            break;
        // Scanner is SCANNING
        case SCANNING:
            statusStr = "Scanning..";
            isScanning = true;
            break;
        // Scanner is waiting for trigger press
        case WAITING:
            statusStr = "Waiting for trigger press..";
            break;
        // Scanner is not enabled
        case DISABLED:
            statusStr = "Scanner is not enabled";
            break;
        default:
            break;
        }
        // Return result to populate on UI thread
        return statusStr;
      }

      @Override
      protected void onPostExecute(String result) {
        // Update the status text view on UI thread with current scanner
        // state
        statusTextView.setText(result);
      }

      @Override
      protected void onPreExecute() {
      }

      @Override
      protected void onProgressUpdate(Void... values) {
      }
    }


    We call this AsyncTask in overridden onStatus method, by creating an instance of AsyncStatusUpdate and passing the StatusData for further processing.


    // process the scan status event on the background thread using
    // AsyncTask and update the UI thread with current scanner state
    new AsyncStatusUpdate().execute(statusData);


    So the onStatus method and AsyncStatusUpdate looks like: img

  15. Now let's override the onDestroy method so we can release the EMDKManager and BarcodeManager resources:


    @Override
    protected void onDestroy() {
        super.onDestroy();


    if (barcodeManager != null)
        barcodeManager = null;

    if (emdkManager != null) {

        // Clean up the objects created by EMDK manager
        emdkManager.release();
        emdkManager = null;
    }

    }

    Your onDestroy method should now look like this:


  16. When we are done with scanning, we must release the scanner hardware resources for other applications to use. So override onStop method and disable the scanner by calling deInitScanner method to release it.


    @Override
    protected void onStop() {
        // TODO Auto-generated method stub
        super.onStop();
        deInitScanner();
    }


    Your onStop method should now look like this:


  17. Finally, Clean up the objects created by EMDK manager in onClosed method, if EMDK closed abruptly.


    // The EMDK closed abruptly. // Clean up the objects created by EMDK
    // manager
    if (this.emdkManager != null) {


    this.emdkManager.release();
    this.emdkManager = null;

    }

    Your onClosed method should now look like this:


That's it!!! We are done with all the coding part that will let us perform some advanced barcode scanning operations on our Symbol Android device using Barcode/Scanning APIs introduced in EMDK V 3.0. Now let us run the application.

Running the Application

  1. Connect the device (having latest EMDK runtime) to USB port.

    Note:
    Make sure the device is in USB debug.

  2. Run the application.


    You can see a Toast, which indicates that the Scanner has been enabled and you can start scanning by pressing hard scan button of the device.

  3. Now if you press and hold the Scan button on the UI, the status listener in the code starts working and current status of Scanner is displayed in Status TextView, which is Scanning. The "Scanner Device Type" Spinner shows Serial SSI Scanner as it is the default scanner for Symbol TC55 device. All the decoders are checked, which means current configuration scan supports all of these decoder types. But Scan Tone is NONE, which means there won't be any tone/sound while scanning a barcode.


    The scanner status is always updated on the status text view below the Edit Text at the bottom.

  4. Lets us change some configurations starting with the device type. We will change it to Camera Scanner.



It will display a success toast when the changes are applied each time you change any scanner configuration just for your knowledge.

  1. Next check the Vibration checkbox and select some scan tone from the Select Scan Tone spinner.



  2. Now once again scan a barcode and this time it will open your device's camera to scan the barcode.



    This is how Barcode/Scanning APIs introduced in EMDK V 3.0 can be used to perform some of the Advanced Scanning operations using soft scan key through application on your Symbol devices without using Profile Wizard.

Important Programming Tips

  1. It is required to do the following changes in the application's AndroidManifest.xml:

    Note:

    • Include the permission for EMDK:

    <uses-permission android:name="com.symbol.emdk.permission.EMDK"/>


    Note:

    • Use the EMDK library:

    <uses-library android:name="com.symbol.emdk"/>

  2. Installing the EMDK for Android application without deploying the EMDK runtime on the Symbol device will fail because of missing shared library on the device.

  3. Use the DataWedge v1.7.12 or higher version to test the ProfileManager.processProfile() for DataWedge profiles.
