Product Recognition

AI Data Capture SDK

Overview

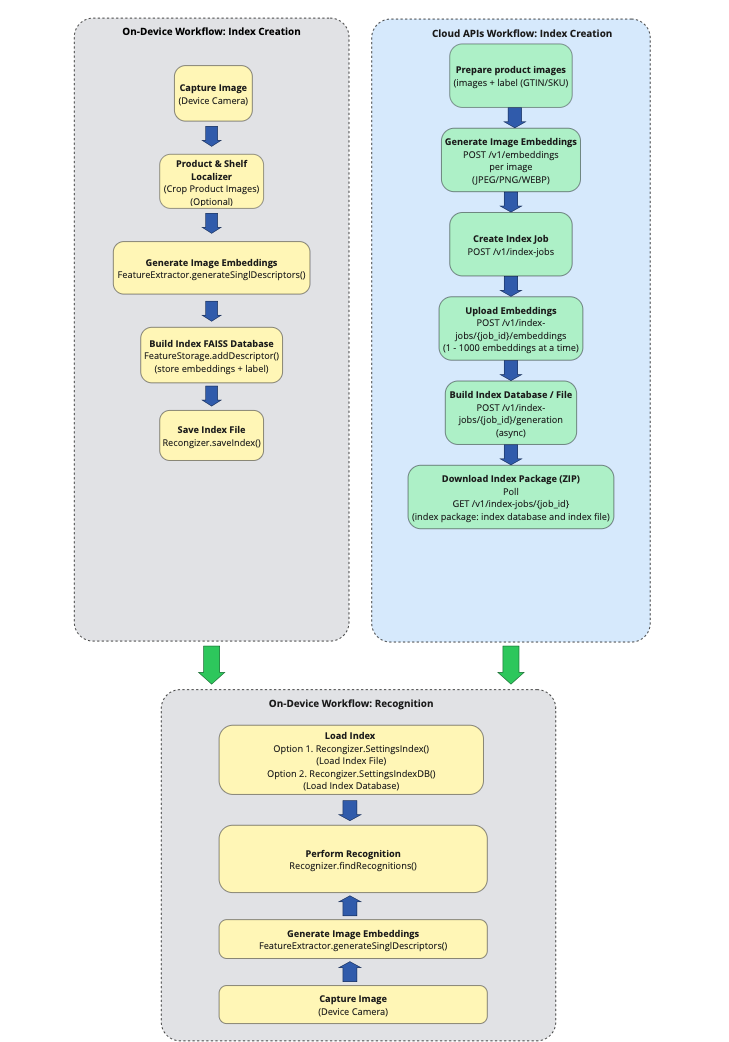

Product Recognition utilizes the Feature Extractor, Feature Storage, and Recognizer classes to identify products in images. Typically used alongside the Localizer class, this approach builds a comprehensive knowledge base that enhances inventory tracking and facilitates automated checkouts.

  • Feature Extractor - Extracts key features from images to produce descriptors that characterize these features.
  • Feature Storage - Stores these descriptors in a vector database, allowing users to build a comprehensive product recognition database.
  • Recognizer - Initializes the database to perform semantic searches, identifying the most similar embeddings in the knowledge base and predicting the identity of detected products.

With the Shelf and Product Localizer, products within an image are first detected, then ‘cropped’ products are submitted for recognition, streamlining the process for efficient and accurate identification. This system is particularly optimized for retail product recognition.


AI Model

The product-and-shelf-recognizer model is designed specifically for product and shelf recognition tasks. For more information and to download the model, refer to Product and Shelf Recognizer Model.


Feature Extractor

The FeatureExtractor class generates a set of Descriptors, vectors of float numbers that offer a meaningful representation of the features of items identified within an image. It supports processing both entire images and specific regions defined by bounding boxes, accommodating various input formats and orientations. After the descriptors are generated, integration with Feature Storage allows for storage and retrieval of the descriptors for use.

Common Applications:

  • Image Classification: Use descriptors that help classify images into categories, enhancing systems that sort or tag images based on visual content.
  • Object Detection and Recognition: Extract features and generate descriptors from a whole image or specific regions of an image to help identify objects. This could be useful for surveillance, automated inspections or facial recognition within a crowd.
  • Image Search and Retrieval: Implement image search functionality allowing to match objects to similar known entities from a database based on their descriptors, allowing for efficient and accurate visual searches. This could be useful to analyze specific areas of product images to detect defects or inconsistencies in manufacturing, ensuring high-quality standards.
  • Oriented Object Detection: Extract features from specific image regions at known angles to improve object detection accuracy across various camera orientations. This is particularly useful in security systems.

Configuration options for Feature Extractor are offered through FeatureExtractor.Settings.


Developer Guide

This guide demonstrates how to create descriptors for entire images or specific regions, with the option to adjust for orientation if necessary.

Step 1: Initialization

  1. Import the FeatureExtractor class: Use com.zebra.ai.vision.detector.FeatureExtractor.
  2. Initialize the SDK: Use your application's context object and invoke init() from the AIVisionSDK class.
  3. Initialize Settings: Create a Settings object with the model file path and model name.
  4. Instantiate FeatureExtractor: Use the Settings object to create an instance of FeatureExtractor with a CompletableFuture. The thenAccept() method allows handling of the instantiated FeatureExtractor for further operations.

Sample Code:

    import com.zebra.ai.vision.detector.FeatureExtractor;

    // Developer must Initialize SDK by calling below API:
    AIVisionSDK.getInstance(this.getApplicationContext()).init();

    // Context refers to application context object.

    String mavenModelName = "product-and-shelf-recognizer";

    FeatureExtractor.Settings feSettings = new FeatureExtractor.Settings ( mavenModelName);

    // optional set runtime processing order, by default DSP will be used
    Integer[] rpo = new Integer[]{InferencerOptions.DSP};
    feSettings.inferencerOptions.runtimeProcessorOrder = rpo;

    // Initialize FeatureExtractor object
    final FeatureExtractor featureExtractor = null;

    CompletableFuture<FeatureExtractor> futureObject = FeatureExtractor.getFeatureExtractor (settings, executor);

    // Use the futureObject to implement thenAccept() callback of CompletableFuture
    futureObject.thenAccept(featureExtractorInstance -> {
        // Use the featureExtractor object returned here for the detection of products
        featureExtractor = featureExtractorInstance;
    }).exceptionally(e ->{
        if (e instanceof AIVisionSDKException) {
            Log.e(TAG, "[AIVisionSDKException] FeatureExtractor object creation failed: " + e.getMessage());
        }
        return null;
    });

Step 2: Generate Descriptors

Generate descriptors for either whole images or specific image regions, with the option to adjust orientation if required.

For a Whole Image
  1. Initialization: Ensure that the FeatureExtractor is properly initialized with the necessary settings. Prepare the bitmap image and executor for processing.

  2. Descriptor Generation: Call generateSingleDescriptor with the bitmap and executor. This method returns a CompletableFuture that contains the image's descriptors.

    • Without orientation adjustment:

      CompletableFuture<Descriptor> futureObject = featureExtractor.generateSingleDescriptor (bitmap, executor);

    • With orientation adjustment: Include the orientation angle at which the image was captured:

      CompletableFuture<Descriptor> futureObject = featureExtractor.generateSingleDescriptor(bitmap, orientation, executor);

  3. Asynchronous Processing: Use the thenAccept method of CompletableFuture to handle the result once the descriptor generation is complete. This allows the descriptors for processing without blocking the main thread.

  4. Resource Management: After processing is complete, call dispose() on the FeatureExtractor object to free resources and memory used during feature extraction.

    // Input params: bitmap image and an executor thread object for running the feature extractor functionality
    CompletableFuture<Descriptor> futureObject = featureExtractor.generateSingleDescriptor (bitmap, executor);

    // If orientation adjustment is required, pass the orientation angle from which the image was taken
    // Comment out the code line above and use this line instead:
    // CompletableFuture<Descriptor> futureObject = featureExtractor.generateSingleDescriptor(bitmap, orientation, executor);
    futureObject.thenAccept (results -> {
        // Process the returned descriptor object
    }).exceptionally(e -> {
        if (e instanceof AIVisionSDKException) {
            Log.e(TAG, "[AIVisionSDKException] Failed to generate descriptor : " + e.getMessage());
        }
        return null;
    });

    // Once done using the featureExtractor object, dispose the object to release the resources and memory used for feature extraction
    featureExtractor.dispose();

For Specific Image Regions
  1. Initialization: Ensure that the FeatureExtractor is initialized. Prepare the bitmap image and define the array of bounding boxes (detections) that indicate the specific regions of interest. If applicable, determine the orientation angle of the image. Set up an executor to manage asynchronous task execution.

  2. Descriptor Generation for Regions: Call generateDescriptors, passing the bounding boxes, bitmap, and executor. This returns a CompletableFuture that outputs a descriptor object for each item specified by the bounding boxes.

    • Without orientation adjustment:

      CompletableFuture<Descriptor> futureObject = featureExtractor.generateDescriptors(detections, bitmap, executor);

    • With orientation adjustment: Include the orientation angle at which the image was captured:

      CompletableFuture<Descriptor> futureObject = featureExtractor.generateDescriptors(detections, bitmap, orientation, executor);

  3. Asynchronous Processing: Use the thenAccept method of CompletableFuture to process the descriptors as they are generated.

  4. Resource Management: After processing is complete, call dispose() on the FeatureExtractor to release resources and memory used during extraction. This is essential for optimal performance and preventing memory leaks.

Sample Code:

    // Input params: bitmap image; array of bounding boxes; an executor thread object thread object for running the feature extractor functionality
    CompletableFuture<Descriptor> futureObject = featureExtractor.generateDescriptors(detections, bitmap, executor);

    // If orientation adjustment is required, pass the orientation angle from which the image was taken
    // Comment out the code line above and use this line instead:
    // CompletableFuture<Descriptor> futureObject = featureExtractor.generateDescriptors(detections, bitmap, orientation, executor);
    futureObject.thenAccept (results -> {
        // Process the Descriptor object     }).exceptionally(e -> {
        if (e instanceof AIVisionSDKException) {
            Log.e(TAG, "[AIVisionSDKException] generateSingleDescriptor Failed to generate descriptor : " + e.getMessage());
        }
        return null;
    });

    // Once done using the featureExtractor object dispose the object to release the resources and memory used for feature extraction
    featureExtractor.dispose();

Methods

getFeatureExtractor(Settings settings, Executor executor)

    CompletableFuture<FeatureExtractor> getFeatureExtractor(Settings settings, Executor executor) throws IOException, InvalidInputException, AIVisionSDKLicenseException, AIVisionSDKSNPEException, AIVisionSDKModelException, AIVisionSDKException

Description: Asynchronously loads the model and returns a FeatureExtractor object.

Parameters:

  • settings - The Settings object containing configuration for the feature extractor.
  • executor - Executor for delivering the result; if null, the SDK default executor is used.

Return Value: Returns a CompletableFuture that resolves to a FeatureExtractor object.

Exceptions:

  • InvalidInputException - Thrown if the Settings object is null.
  • AIVisionSDKLicenseException - Thrown if there are licensing issues related to the product-and-shelf-recognizer model.
  • AIVisionSDKSNPEException - Thrown if there is an error in the SNPE library.
  • AIVisionSDKModelException - Thrown if the SDK version is incompatible with the model.
  • AIVisionSDKException - Thrown if the AI Data Capture SDK is not initialized.

void Dispose()

    void FeatureExtractor.dispose()

Description: Releases all internal resources used by the feature extractor object. This method should be called manually to free resources.


generateSingleDescriptor (Bitmap bmp, int orientation, Executor executor)

    CompletableFuture<Descriptor> generateSingleDescriptor(Bitmap bmp, int orientation, Executor executor) throws InvalidInputException, AIVisionSDKException

Description: Generates a descriptor for a whole image with a specified orientation.

Parameters:

  • bmp - The image to process.
  • orientation - This refers to the orientation angle, which is of the Integer type:
    • 0 - 0 degrees
    • 1 - 90 degrees
    • 2 - 180 degrees
    • 3 - 270 degrees
  • executor - Results are returned in this executor.

Return Value: A CompletableFuture with a Descriptor object as the output for a given input image.

Exceptions:

  • InvalidInputException - Thrown if bmp is null or the orientation is invalid.
  • AIVisionSDKException - Thrown if the image queue size is exceeded.

generateSingleDescriptor (Bitmap bmp, Executor executor)

    CompletableFuture<Descriptor> generateSingleDescriptor(Bitmap bmp, Executor executor) throws InvalidInputException, AIVisionSDKException

Description: Generates a descriptor for a whole image without specifying orientation.

Parameters:

  • bmp - The image to process.
  • executor - Results are returned in this executor.

Return Value: A CompletableFuture with a Descriptor object as the output for a given input image.

Exceptions:

  • InvalidInputException - Thrown if bmp is null or the orientation is invalid.
  • AIVisionSDKException - Thrown if the image queue size is exceeded.

generateDescriptors (BBox[ ] detections, Bitmap bmp, int orientation, Executor executor)

    CompletableFuture<Descriptor> generateDescriptors(BBox[] detections, Bitmap bmp, int orientation, Executor executor) throws InvalidInputException, AIVisionSDKException

Description: Generates a set of descriptors for each item in an image determined by an array of bounding boxes with a specified orientation.

Parameters:

  • detections - Array of bounding boxes determining the location of items.
  • bmp - The image to process.
  • orientation - This refers to the orientation angle, which is of Integer type:
    • 0 - 0 degrees
    • 1 - 90 degrees
    • 2 - 180 degrees
    • 3 - 270 degrees
  • executor - An Executor for asynchronous task execution.

Return Value: A CompletableFuture with a Descriptor object as the output for each of the items defined by the bounding boxes adjusted for the specified orientation.

Exceptions:

  • InvalidInputException - Thrown if bmp or detections is null or orientation is invalid.
  • AIVisionSDKException - Thrown if a the image queue size is exceeded.

generateDescriptors (BBox[ ] detections, Bitmap bmp, Executor executor)

    CompletableFuture<Descriptor> generateDescriptors(BBox[] detections, Bitmap bmp, Executor executor) throws InvalidInputException, AIVisionSDKException

Description: Generates a set of descriptors for each item in an image determined by an array of bounding boxes without specifying orientation.

Parameters:

  • detections - Array of bounding boxes determining the location of items.
  • bmp - The image to process.
  • executor - Results are returned in this executor.

Return Value: A CompletableFuture with a Descriptor object as the output for each of the items defined by the bounding boxes adjusted for the specified orientation.

Exceptions:

  • InvalidInputException - Thrown if bmp or detections is null.
  • AIVisionSDKException - Thrown if the image queue size is exceeded.

getFeatureExtractor (Settings settings, Executor executor)

     CompletableFuture<FeatureExtractor> getFeatureExtractor(Settings settings, Executor executor) throws IOException, InvalidInputException, AIVisionSDKLicenseException, AIVisionSDKSNPEException, AIVisionSDKModelException, AIVisionSDKException

Description: Asynchronously loads the model and returns a FeatureExtractor object.

Parameters:

  • settings - Settings to construct a FeatureExtractor object.
  • executor - A FeatureExtractor object is returned in this executor.

Return Value: A CompletableFuture containing the initialized FeatureExtractor object.

Exceptions:

  • InvalidInputException - Thrown if settings is null.
  • AIVisionSDKLicenseException - Thrown if there is a licensing issue related to the product-and-shelf-recognizer model.
  • AIVisionSDKSNPEException - Thrown if there is an error in the SNPE library.
  • AIVisionSDKModelException - Thrown if the current SDK version is incompatible with the required version.
  • AIVisionSDKException - Thrown if the AI Data Capture SDK is not initialized.

FeatureExtractor.Settings

The FeatureExtractor.Settings class is a nested class within the FeatureExtractor class. It provides configuration options for the feature extractor, offering multiple constructors to initialize the settings with varying levels. This flexibility allows developers to tailor configurations according to their specific requirements.


Settings (String mavenModelName)

    FeatureExtractor.Settings feSettings = new FeatureExtractor.Settings(mavenModelName) throws InvalidInputException,AIVisionSDKException;

Description: Constructor for the Settings object with the model name, in this case, "product-and-shelf-recognizer".

Parameters:

  • mavenModelName - Name of the model specified in the Maven repository.

Exceptions:

  • InvalidInputException - Thrown if the mavenModelName is invalid.
  • AIVisionSDKException - Thrown if an error occurs while reading the specified model or if the SDK is not initialized.

Settings (File ModelFile)

    FeatureExtractor.Settings feSettings = new FeatureExtractor.Settings(modelFile) throws InvalidInputException, AIVisionSDKException;

Description: Constructs a new Settings object with a File object passed.

Parameters:

  • ModelFile - The file object that contains the Product and Shelf Localizer model.

Exceptions:

  • InvalidInputException - Thrown if the ModelFile is invalid.
  • AIVisionSDKException - Thrown if an error occurs while reading the model of if the SDK is not initialized.

Attributes

String modelName

Description: Name of the model in the compressed file, identifying which model to use from the provided resources.

InferencerOptions = new InferencerOptions()

Description: An instance of InferencerOptions, providing additional configuration options for the inferencer’s behavior.


Feature Storage

Feature Storage is primarily responsible for storing and updating the descriptors of items generated by the FeatureExtractor. It stores them in a database along with their corresponding class names to be used for detection by the Recognizer.

Developer Guide

This guide demonstrates how to retrieve descriptors from Feature Extractor and store them into the database.

Step 1: Initialization

  1. Import the FeatureStorage class: Use com.zebra.ai.vision.detector.FeatureStorage.
  2. Initialize the SDK: Use your application's context object and invoke init() from the AIVisionSDK class.
  3. Initialize Settings: Create a Settings object with the database file path (e.g., file_path/product.db) as the input parameter
  4. Set up an Executor: Create an Executor to receive the FeatureStorage object.
  5. Instantiate FeatureStorage: Use the Settings object to create an instance of FeatureStorage with a CompletableFuture. The thenAccept() method allows handling of the FeatureStorage for further operations.

Sample Code:

    import com.zebra.ai.vision.detector.FeatureStorage;

    // initialize AI Vision SDK
    AIVisionSDK.getInstance(this.getApplicationContext()).init();

    // Create settings
    FeatureStorage.Settings settings = new FeatureStorage.Settings(“data_base_file_path/product.db”);
    FeatureStorage featureStorage = null;

    // Initialize executor
    Executor executor = Executors.newFixedThreadPool(1);

    // Initialize FeatureStorage object
    CompletableFuture<FeatureStorage> futureObject = FeatureStorage.getFeatureStorage(settings , executor);
    futureObject.thenAccept(featureStorageInstance -> {
        // Use the featureStorageInstance returned here for storing Feature descriptors generated by Feature Extractor.
        featureStorage =  featureStorageInstance;
    }).exceptionally( e -> {
        if (e instanceof AIVisionSDKException) {
            Log.e(TAG, "[AIVisionSDKException] FeatureStorage object creation failed: " + e.getMessage());
        }
        return null;
    });

Step 2: Store Feature Descriptors

  1. Retrieve the feature descriptors: Use the FeatureExtractor to obtain a Descriptor object, which contains descriptors of type float[][] from the provided bitmap image.

  2. Store descriptors: Store these descriptors from the Descriptor object into the database. The label_file parameter serves as the identifier for the product represented by the descriptors, and descriptorObj contains product's descriptors.

    // Obtain descriptorObj from FeatureExtractor and store the descriptors in the database using FeatureStorage
    featureStorage.addDescriptors(label_file , descriptorObj);

    // Dispose of the FeatureStorage object once it is no longer needed
    featureStorage.dispose();


Methods

getFeatureStorage(Settings settings, Executor executor)

    CompletableFuture<FeatureStorage> getFeatureStorage(Settings settings, Executor executor) throws InvalidInputException, AIVisionSDKSNPEException, AIVisionSDKException

Description: Asynchronously loads the model and returns a FeatureStorage object.

Parameters:

  • settings - Configuration options for the FeatureStorage.
  • executor - FeatureStorage object is returned in this executor.

Return Value: Returns a CompletableFuture<FeatureStorage> object.

Exceptions:

  • InvalidInputException - Thrown if the Settings object is null.
  • AIVisionSDKSNPEException - Thrown if there is an error related to the SNPE library.
  • AIVisionSDKException - ThrowniIf the AI Data Capture SDK is not initialized.

dispose()

    void dispose()

Description: Releases all internal resources used by the FeatureStorage object. This method should be called manually to free resources.


addDescriptors (String label, Descriptor descriptorObj, boolean forceSupport, boolean randomTrim)

    void addDescriptors(String label, Descriptor descriptorObj, boolean forceSupport, boolean randomTrim) throws InvalidInputException

Description: Adds descriptors for a product with options to support flagging and random trimming.

Parameters:

  • label - Identifier of the product represented by the descriptors.
  • descriptorObj - A Descriptor object containing the descriptors to add.
  • forceSupport - If true, flags the descriptors as support.
  • randomTrim - If true, random descriptors are removed when exceeding the maxUpdateN value; otherwise, descriptors at the back are removed.

Exceptions:

  • InvalidInputException: Thrown when descriptorObj or label is null.

addDescriptors(String label, Descriptor descriptorObj, boolean forceSupport)

    void addDescriptors(String label, Descriptor descriptorObj, boolean forceSupport) throws InvalidInputException

Description: Adds descriptors for a product with an option to force support.

Parameters:

  • label - Identifier of the product represented by the descriptors.
  • descriptorObj - A Descriptor object containing the descriptors to add.
  • forceSupport - If true, flags the descriptors as support.

Exceptions:

  • InvalidInputException: Thrown when descriptorObj or label is null.

addDescriptors(String label, Descriptor descriptorObj)

    void addDescriptors(String label, Descriptor descriptorObj) throws InvalidInputException

Description: Adds descriptors for a product without additional flags.

Parameters:

  • label: Identifier of the product represented by the descriptors..
  • descriptorObj: A Descriptor object consisting the descriptors to add.

Exceptions:

  • InvalidInputException: Thrown when descriptorObj or label is null.

addDescriptorsWithImages(String label, Descriptor descriptorObj, byte[ ][ ] images, boolean forceSupport)

    void addDescriptorsWithImages(String label, Descriptor  descriptorObj, byte[][] images, boolean forceSupport) throws InvalidInputException

Description: Adds descriptors and associated images for a product with an option to force support.

Parameters:

  • label - Identifier of the product represented b the descriptors.
  • descriptorObj - A Descriptor object containing the descriptors to add.
  • images - An array of images to add.
  • forceSupport - If true, flags the descriptors as support.

Exceptions:

  • InvalidInputException: Thrown when descriptorObj or label is null.

addDescriptorsWithImages(String label, Descriptor descriptorObj, byte[ ][ ] images)

    void addDescriptorsWithImages(String label, Descriptor descriptor, byte[][] images) throws InvalidInputException

Description: Adds descriptors and associated images for a product without forcing support.

Parameters:

  • label - Identifier of the product represented by the descriptors.
  • descriptorObj - A Descriptor object containing the descriptors to add.
  • images - An array of images to add.

Exceptions:

  • InvalidInputException: Thrown when descriptorObj or label is null.

incrementDescriptorHitCount(String label, Descriptor descriptorObj)

    void incrementDescriptorHitCount(String label, Descriptor descriptorObj) throws InvalidInputException

Description: Increments the hit count for a specific product descriptor.

Parameters:

  • label - Identifier of the product for which the hit count is updated.
  • descriptorObj - The descriptor for which to update the hit count.

Exceptions:

  • InvalidInputException - Thrown if descriptorObj or label is null.

getSupportDescriptorsForProduct(String label)

    float[][] getSupportDescriptorsForProduct(String label)

Description: Retrieves all support descriptors for a specified class.

Parameters:

  • label - The product identifier for which to retrieve support descriptors.

Returns: Array of support descriptors for the specified product.


getAvailableClassNames()

    String[] getAvailableClassNames()

Description: Retrieves the product labels from database with at least one supported descriptor.

Returns: List of product labels with support descriptors.


FeatureStorage.Settings

The FeatureStorage.Settings class provides options to configure the behavior of FeatureStorage.

String dbSource

Description: Specifies the location of the database.

int maxUpdateN

Description: Specifies the maximum number of descriptors that can be added from an image.


Recognizer

The Recognizer class offers methods to identify patterns from descriptors produced by the Feature Extractor and stored in Feature Storage. It determines the top matches for a given set of descriptors and manages the loading and saving of indices and labels for persistent storage. The class supports both synchronous and asynchronous result retrieval.

This guide begins with initial instructions for basic setup of the Recognizer after implementing Feature Extractor and Feature Storage. Subsequent sections offer a comprehensive list of Recognizer settings that can be fine-tuned for specific needs:


Developer Guide

This guide demonstrates how use the Recognizer to find recognitions based on the descriptors generated. Setup the database to store feature descriptors. Initialize the Recognizer with an index.

Step 1: Initialize Database

  1. Import Necessary Classes: Import the Recognizer class and other necessary classes such as CompletableFuture and Executor.

  2. Initialize SDK: Call AIVisionSDK.getInstance(Context).init() from the AIVisionSDK class to initialize the SDK. Here, Context refers to the application context object.

  3. Configure SettingsDb Instance: Initialize a Recognizer.SettingsDb object and set the dbSource attribute to the path of the SQLite database file containing the feature descriptors.

  4. Initialize Executor: Use Executors.newFixedThreadPool(1) to create an Executor for managing asynchronous tasks efficiently.

  5. Instantiate Recognizer: Use the getRecognizer(dbSettings, executor) method to get a CompletableFuture<Recognizer> object, initializing the recognizer with the database settings.

  6. Handle Asynchronous Result: Use thenAccept() on the CompletableFuture to handle the Recognizer object once it becomes available. Assign the recognizer instance to a variable for further use.

    import com.zebra.aivision.detector.Recognizer;

    // Initialize SDK
    AIVisionSDK.getInstance(this.getApplicationContext()).init(); // Context refers to application context object.

    // Initialize Recognizer settings object
    Recognizer.SettingsDb dbSettings = new Recognizer.SettingsIndex();
    String database_file_path  = “path_of_db_file”; // Full path to the SQLite database file
    dbSettings.dbSource = database_file_path ;

    // Initialize Recognizer object
    Recognizer recognizer = null;

    // Initialize recognizer from a database
    // settings = Recognizer.SettingsDb object created above

    // Initialize executor
    Executor executor = Executors.newFixedThreadPool(1);

    CompletableFuture<Recognizer> futureObject = Recognizer.getRecognizer(dbSettings, executor);

    // Use the futureObject to implement thenAccept() callback of CompletableFuture.
    futureObject.thenAccept (recognizerInstance -> {
        // Use the recognizer object returned here to recognize products
        recognizer = recognizerInstance;
    }).exceptionally( e -> {
        if (e instanceof AIVisionSDKException) {
            Log.e(TAG, "[AIVisionSDKException] Recognizer object creation failed: " + e.getMessage());
        }
        return null;
    });


Step 2: Initialize Search Indexes

  1. Import Necessary Classes: Import the Recognizer class and necessary concurrent utilities such as CompletableFuture and Executor.

  2. Configure SettingsIndex: Create an instance of Recognizer.SettingsIndex and set the indexFilename and labelFilename attributes to the paths of the FAISS (Facebook AI Similarity Search) index and label files, respectively.

  3. Prepare Executor: Instantiate an Executor using Executors.newFixedThreadPool(1) to handle asynchronous tasks efficiently.

  4. Initialize Recognizer: Use Recognizer.getRecognizer(reSettings, executor) to obtain a CompletableFuture<Recognizer> object, which initializes the recognizer with the specified index settings.

  5. Handle Asynchronous Result: Use thenAccept() on the CompletableFuture to handle the Recognizer object once it’s ready. Assign the recognizer instance to a variable for further operations, such as product or shelf detection.

    import com.zebra.CVSDK.Recognizer;

    // Initialize Recognizer
    Recognizer.SettingsIndex reSettings = new Recognizer.SettingsIndex()

    //set product index file and product label file
    reSettings.indexFilename =  “path_to_product.index”;  // Fully qualified file path to FAISS index object for descriptors
    reSettings.labelFilename = “path_to_product.txt file”; // Fully qualified file path to FAISS index object for labels

    // Initialize Recognizer object
    Recognizer recognizer = null;

    // Initialize executor
    Executor executor = Executors.newFixedThreadPool(1);

    //Initialize recognizer from an index file
    CompletableFuture<Recognizer> futureObject = Recognizer.getRecognizer(reSettings,executor);

    //Use the futureObject to implement thenAccept() callback of CompletableFuture.
    futureObject.thenAccept (recognizerInstance -> {
        //Use the recognizer object returned here for the detection of Shelves/products
        recognizer = recognizerInstance;
    }).exceptionally( e -> {
        if (e instanceof AIVisionSDKException) {
            Log.e(TAG, "[AIVisionSDKException] Recognizer object creation failed: " + e.getMessage());
        }
        return null;
    });


Step 3: Perform Recognition

  1. Generate Descriptors: Use FeatureExtractor.generateDescriptors() to obtain descriptors required for the recognition process.

  2. Perform Recognition: Invoke one of the following methods to find the appropriate matches for each descriptor:

    • Top 5 matches: recognizer.findRecognitions(descriptors, executor)
    • Top-k matches: recognizer.findRecognitions(descriptors, k, executor)
  3. Process Results: The results are handled asynchronously using thenAccept(). Iterate through the returned Recognition[] to process each recognition result.

  4. Dispose Recognizer: After completing the recognition tasks, call recognizer.dispose() to release resources and memory utilized during the process.

    // Initializing the AIVision SDK
    AIVisionSDK.getInstance(this.getApplicationContext()).init();

    // Create an instance of SettingsDb
    Recognizer.SettingsDb settingsDb = new Recognizer.SettingsDb();

    // Instantiate the Recognizer
    //settings = Recognizer.SettingsDb object created above

    // Initialize executor
    Executor executor = Executors.newFixedThreadPool(1);

    CompletableFuture<Recognizer> futureObject = Recognizer.getRecognizer(settings,executor);

    // Use the futureObject to implement thenAccept() callback of CompletableFuture.
    futureObject.thenAccept (recognizerInstance -> {
        // Use the recognizer object returned here for the detection of barcodes/Shelves/products
        recognizer = recognizerInstance;
    }).exceptionally( e -> {
        if (e instanceof AIVisionSDKException) {
            Log.e(TAG, "[AIVisionSDKException] Recognizer object creation failed: " + e.getMessage());
        }
        return null;
    });

    // Get the Descriptors from FeatureExtractor.generateDescriptors()
    // Perform Recognition
    // Find top-k recognitions for each item represented by a descriptor

    CompletableFuture<Recognition[]> futureObject = recognizer.findRecognitions(descriptors, k, executor);

    // Perform Recognition
    // Find top 5 recognitions for each item represented by a descriptor
    // CompletableFuture<Recognition[]> futureObject = recognizer.findRecognitions(descriptors, executor);
    futureObject.thenAccept (results -> {
        // Process the returned array of recognitions.
    } );

    // Dispose resources
    // Once done using the recognizer object, dispose the object to release the resources and memory used for recognition
    recognizer.dispose();


Methods

getRecognizer (SettingsDb settings, Executor executor)

    CompletableFuture<Recognizer> getRecognizer(SettingsDb settings, Executor executor) throws InvalidInputException, AIVisionSDKException

Description: Asynchronously retrieves a Recognizer using database settings.

Parameters:

  • SettingsDb settings - Settings for initialization from a database.
  • Executor executor - The Recognizer object is returned in this executor.

Return Value: A CompletableFuture<Recognizer> object.

Exceptions:

  • InvalidInputException - Thrown if SettingsIndex object is null.
  • AIVisionSDKException - Thrown if the AI Data Capture SDK is not initialized.

getRecognizer (SettingsIndex settings, Executor executor)

    CompletableFuture<Recognizer> getRecognizer (SettingsIndex settings, Executor executor) throws  InvalidInputException, AIVisionSDKException

Description: Asynchronously retrieves a Recognizer object using index file settings.

Parameters:

  • SettingsIndex settings - Settings for initialization from an index file.
  • Executor executor - The Recognizer object is returned in this executor.

Return Value: A CompletableFuture<Recognizer> object.

Exceptions:

  • AIVisionSDKException - Thrown if the AI Data Capture SDK is not initialized.
  • InvalidInputException - Thrown if the SettingsIndex object is null.

Dispose()

    void Recognizer.dispose()

Description: Frees or releases resources by the Recognizer; must be when the Recognizer is no longer needed.


findRecognitions(Descriptor descriptorObj, int k, Executor executor)

    CompletableFuture<Recognition[]> findRecognitions(Descriptor descriptorObj, int k,Executor executor) throws InvalidInputException, AIVisionSDKException

Description: Finds the top-k recognitions for the given descriptors asynchronously.

Parameters:

  • descriptorObj - Descriptor to use for recognitions.
  • k - Number of maximum top recognitions to return.
  • executor - Results are returned in this executor..

Return Value: A CompletableFuture<Recognition[]> array of recognitions.

Exceptions:

  • AIVisionSDKException - Thrown if the image queue is exceeded.
  • InvalidInputException - Thrown if descriptorObj is null or k is not positive.

findRecognitions(Descriptor descriptorObj, Executor executor)

    CompletableFuture<Recognition[]> findRecognitions( Descriptor descriptorObj, Executor executor) throws InvalidInputException, AIVisionSDKException

Description: Finds the top 5 classes for each item represented by a descriptor. A class is the product category of an item.

Parameters:

  • descriptorObj - Descriptor to use for recognitions.
  • executor - Results are returned in this executor.

Return Value: A CompletableFuture containing an array of Recognition objects.

Exceptions:

  • InvalidInputException - Thrown if descriptorObj is null.
  • AIVisionSDKException - Thrown if the image queue size is exceeded.

findRecommendations (Descriptor descriptorObj, int k)

    Recommendation[] Recognizer.findRecommendations(Descriptor descriptorObj, int k) throws InvalidInputException

Description: This method identifies the top-k labels that match a set of descriptors as a whole.

Parameters:

  • descriptorObj - The descriptor object used for recognition.
  • k - The maximum number of top matches to return.

Return Value: An array of Recommendation objects.

Exceptions:

  • InvalidInputException - Thrown if descriptorObj is null or k is not positive.

saveIndex(String labelFilename, String indexFilename)

    void Recognizer.saveIndex (String labelFilename, String indexFilename)

Description: Write the index state and labels to a file.

Parameters:

  • labelFilename - Filename to write labels to.
  • indexFilename - Filename to write indices to.

loadIndex()

    void Recognizer.loadIndex (String labelFilename, String indexFilename)

Description: Read the index state and labels from a file.

Parameters:

  • labelFilename - The filename to read labels from.
  • indexFilename - The filename to read indices from.

Recognizer.Recognition

The Recognition class serves as a container for results from a product recognition process. Each instance of this class contains three parallel arrays: similarity, normalizedSimilarity, and sku. These arrays provide a comprehensive overview of the recognition results, including both the raw and normalized similarity scores, as well as the unique SKUs of the recognized products.

similarity

    float Recognizer.Recognition.similarity[]

Description: This attribute stores the raw similarity scores, indicating the degree of similarity between the input data and each recognized product.

normalizedSimilarity

    float Recognizer.Recognition.normalizedSimilarity[]

Description: This array contains the normalized similarity scores for each recognized product, allowing for a more uniform comparison across different recognition tasks.

sku

    float Recognizer.Recognition.sku[]

Description: This attribute contains the SKU identifiers for each recognized product, facilitating product identification and inventory management.


Recognizer.SettingsDb

The Recognizer.SettingsDb class encapsulates the settings required for initializing a recognizer using a database. It provides mechanisms to define the database source, specify FAISS index parameters, and filter labels, among other configurations.


SettingsDb()

    Recognizer.SettingsDb.SettingsDb() throws AIVisionSDKException

Description: Constructs a new SettingsDb object for initializing a Recognizer using database settings.

Exceptions:

  • AIVisionSDKException - Thrown if the AI Data Capture SDK is not initialized.

SettingsDb(String modelFilePath)

    Recognizer.SettingsDb.SettingsDb (String modelFilePath) throws AIVisionSDKException

Description: Constructs a new SettingsDb object with a specified model file path for configuring a Recognizer.

Parameters:

  • filename - The file location containing resources for the recognizer, such as a meta file with configuration values.

resourceName

    String Recognizer.SettingsDb.resourceName

Description: An optional parameter specifying the location of the file containing resources for the recognizer (i.e., meta files with configuration values). This allows for configuration overrides.


dbSource

    String Recognizer.SettingsDb.dbSource

Description: Specifies the location of the database. This attribute is crucial for determining where the recognizer should source its data.


faissIndexString

    String Recognizer.SettingsDb.faissIndexString

Description: Defines the type of the FAISS (Facebook AI Similarity Search) index, used to select the appropriate indexing strategy for the database.


faissParamsString

String Recognizer.SettingsDb.faissParamsString

Description: Additional parameters for the FAISS index, allowing for fine-tuning the index settings beyond the default configuration.


labelFilter

    String[] Recognizer.SettingsDb.labelFilter

Description: A list of labels to ignore from the database, helping in filtering out unwanted data during the recognition process.


indexDimensions

    Integer Recognizer.SettingsDb.indexDimensions

Description: Specifies the dimension of the vectors stored in the search index, ensuring compatibility between the data and the indexing method.


Recognizer.SettingsIndex

The Recognizer.SettingsIndex class manages settings for initializing a system from an index file. It provides constructors to create instances with default settings or with specified index and label file locations, making it useful for applications that require structured input data and label information for AI vision processing tasks.


SettingsIndex()

    Recognizer.SettingsIndex.SettingsIndex()

Description: Constructs a new SettingsIndex object for initializing a Recognizer using default settings.


SettingsIndex(String index filename, String labelFilename)

    Recognizer.SettingsIndex.SettingsIndex (String IndexFilePath, String LabelFilePath) throws InvalidInputException, AIVisionSDKException

Description: This constructor creates a new SettingsIndex object with specified file locations for both the index and label files. This is useful when specific files are needed to initialize the system.

Parameters:

  • String IndexFilePath - The location of the file to read the index data.
  • String LabelFilePath - The location of the file to read the label data.

Exceptions:

  • InvalidInputException - Thrown if IndexFilePath or LabelFilePath is null or empty.
  • AIVisionSDKException - Thrown if the AI Data Capture SDK is not initialized.

indexFilename

    String Recognizer.SettingsIndex.indexFilename

Description: A string attribute that specifies the location of the path to the index file, facilitating the system's initialization with structured input data.


labelFilename

    String Recognizer.SettingsIndex.labelFilename

Description: A string attribute that specifies the path to the label file, enabling the system to effectively associate labels with the indexed data.


Sample Apps

Refer to the following resources:

  • Start building your first product and shelf recognizer application with the QuickStart Sample application source.
  • Consult the Java/Kotlin snippets, which demonstrate the SDK's capabilities and can be easily integrated into your applications.
  • Access advanced use case and technology-based demos through the Showcase Application, including he AI DataCapture demo, which outlines how users can enroll and recognize products in real-time.
    • For instructions on accessing these demo apps, refer to the installation guide
    • Access source code for these demos in the ZebraDevs github repo to easily build these capabilities into your application
